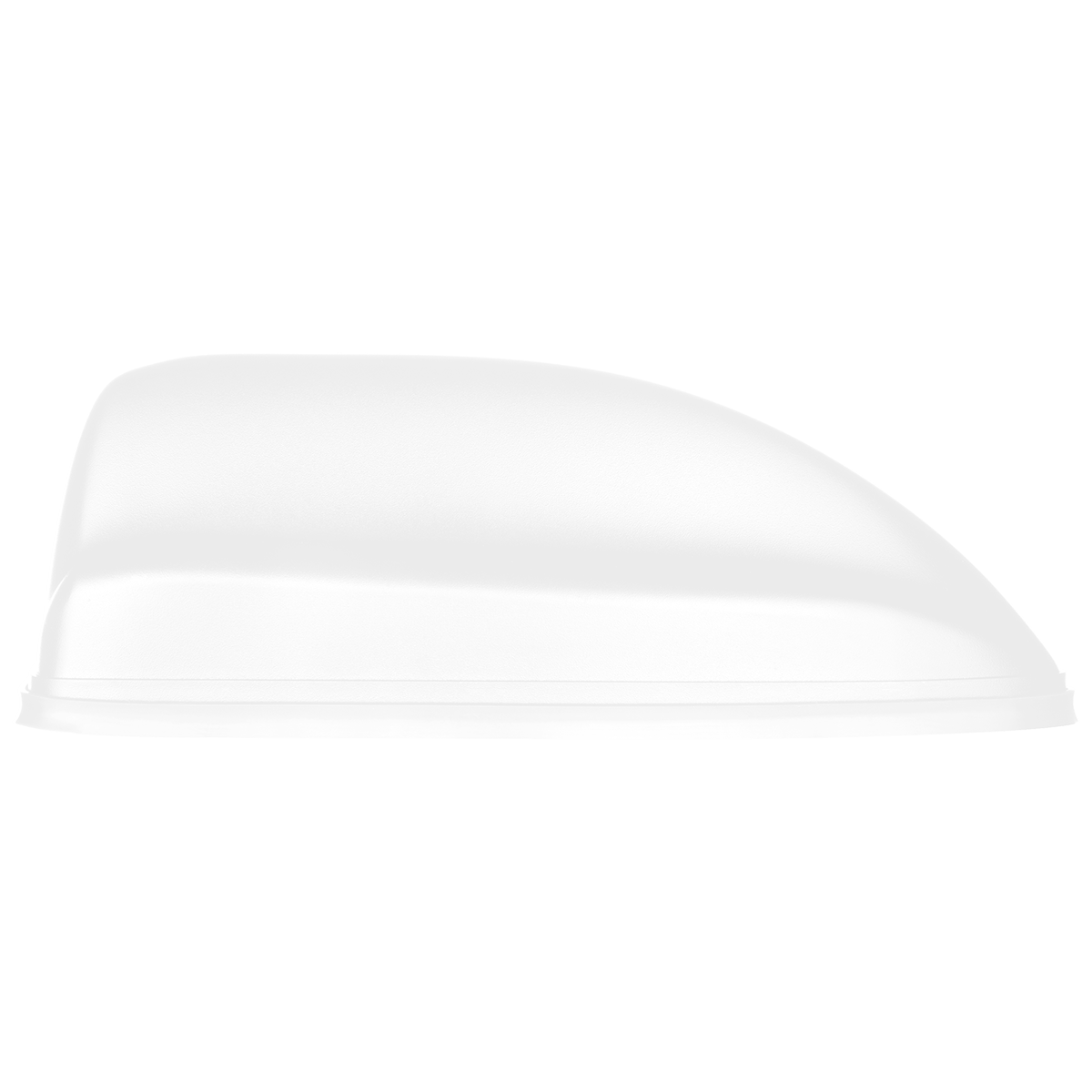

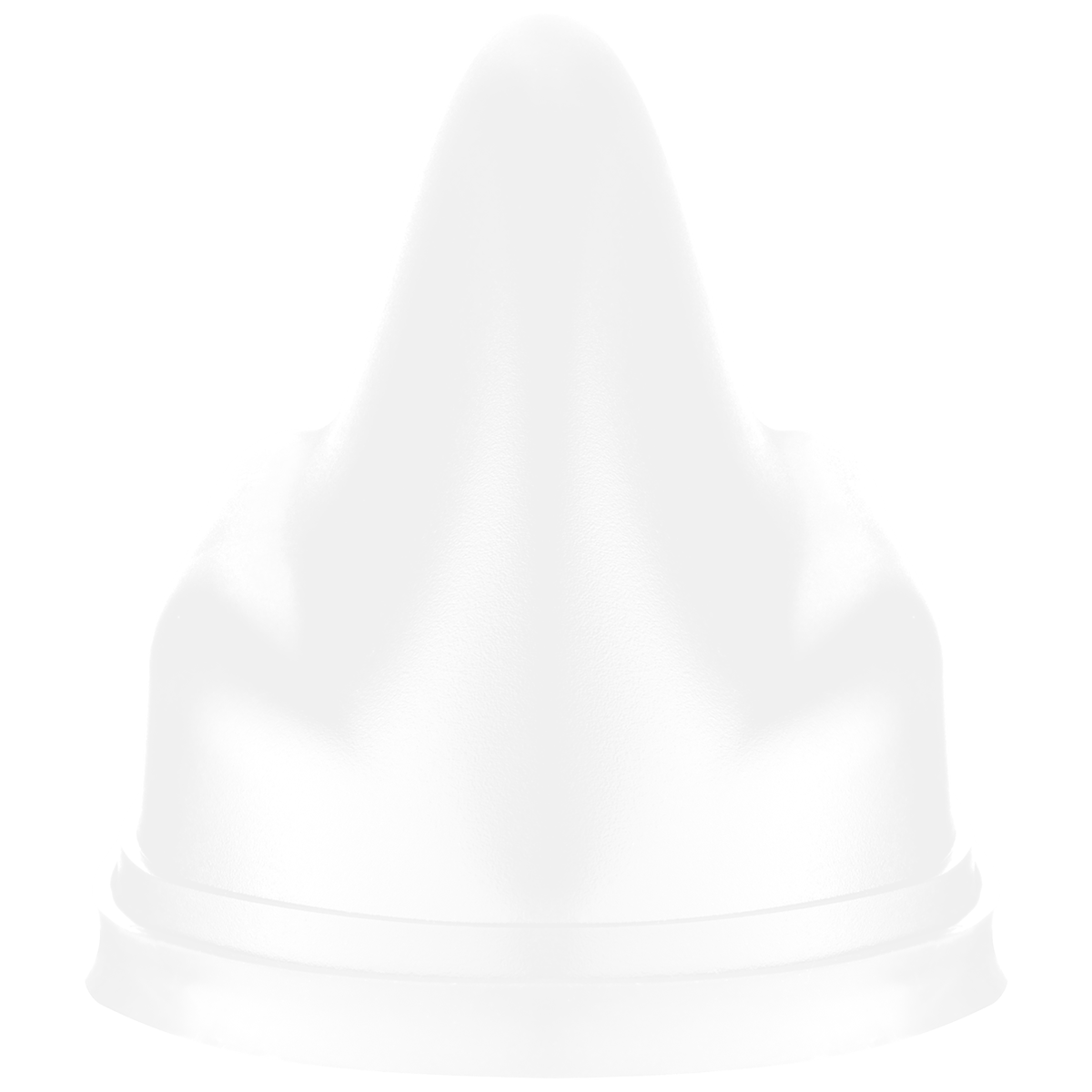

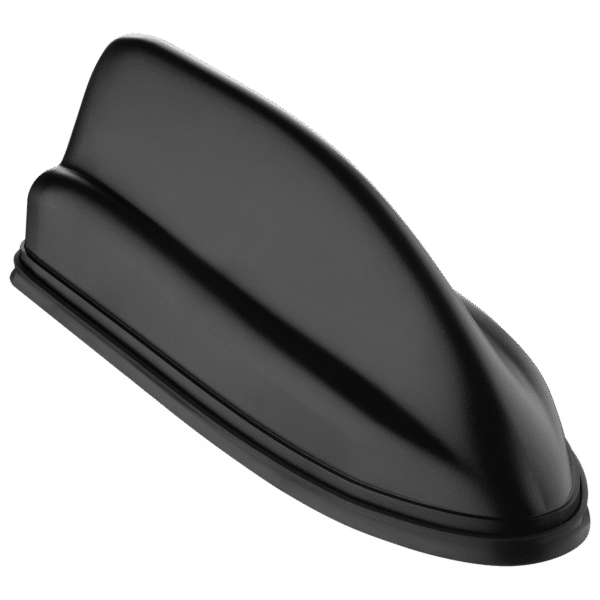

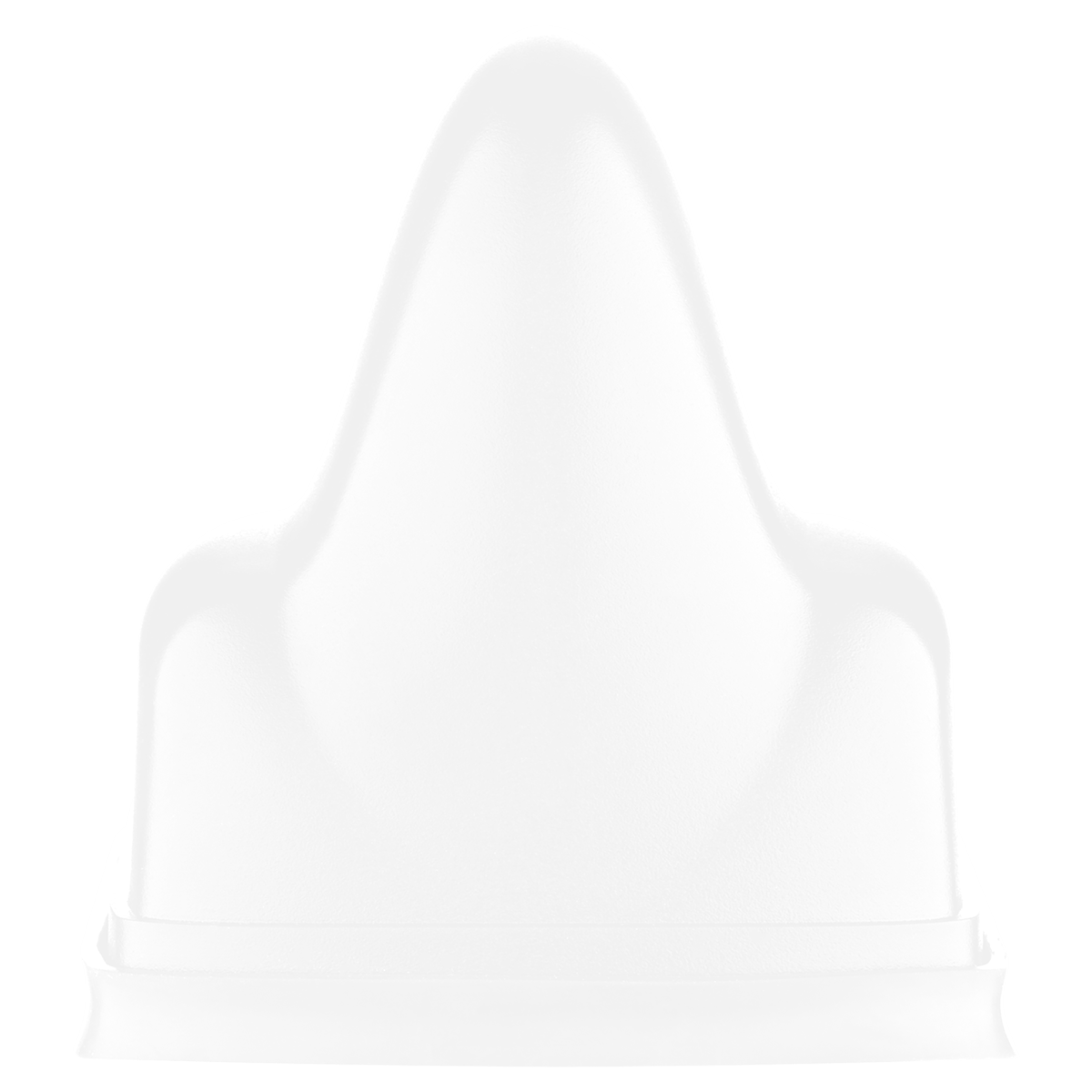

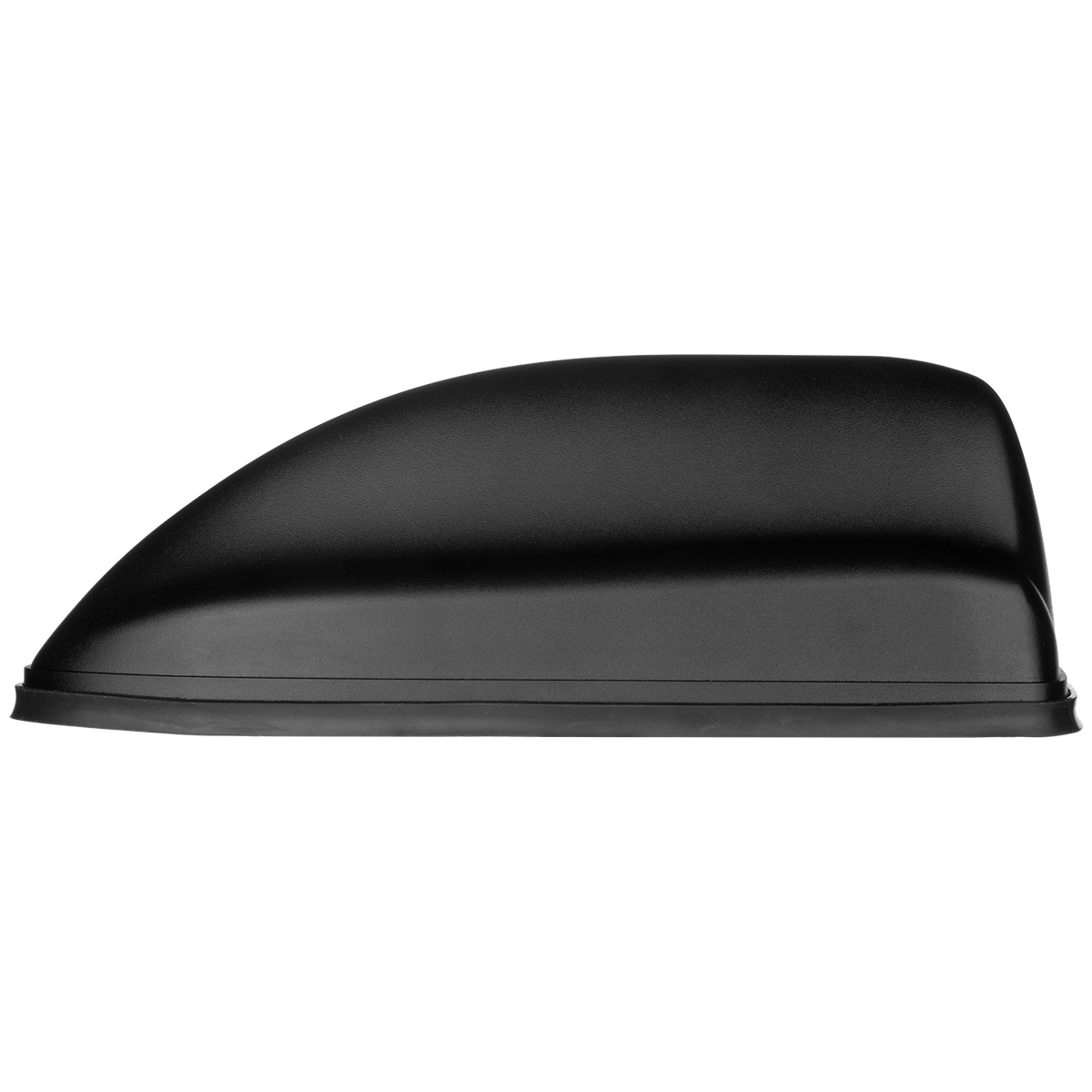

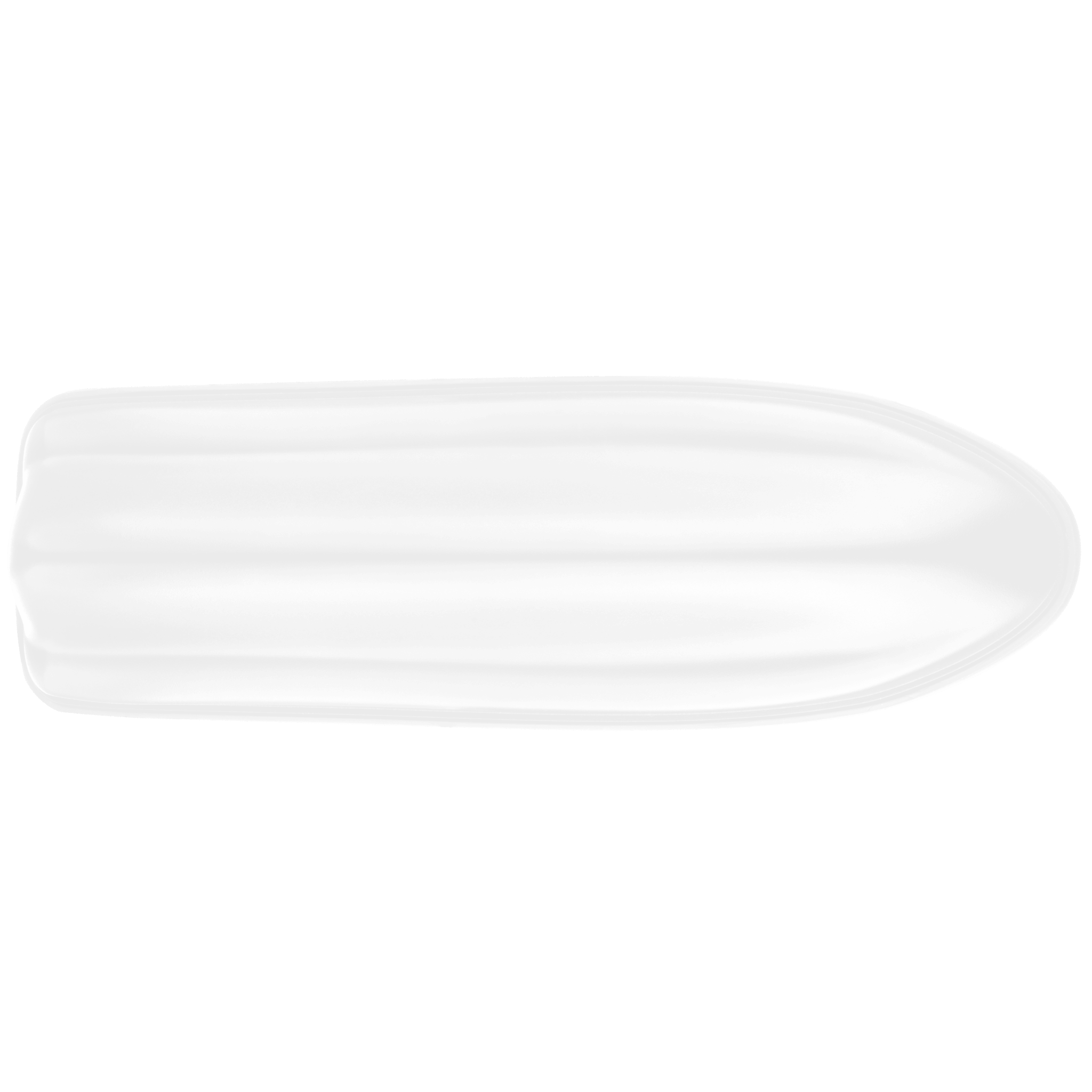

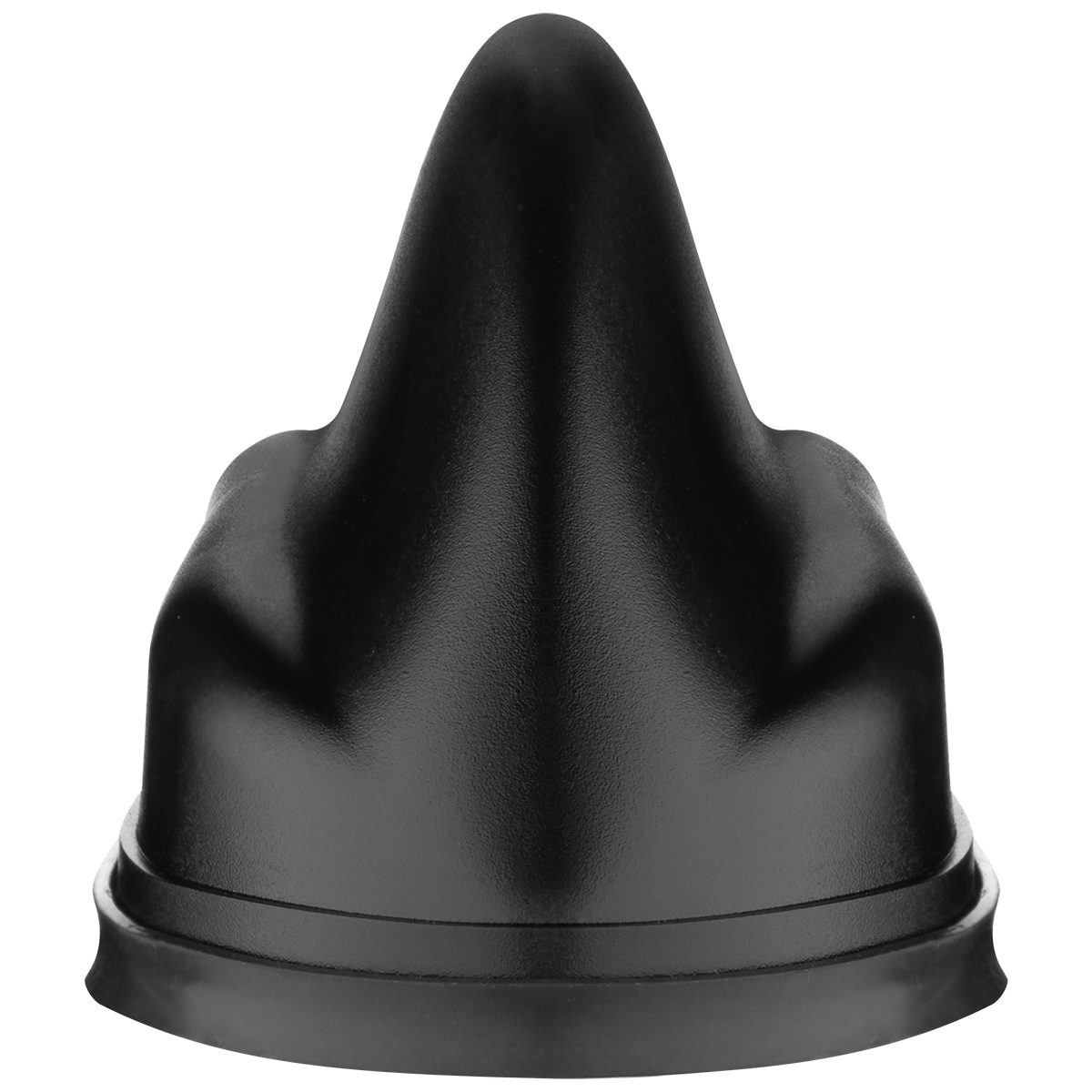

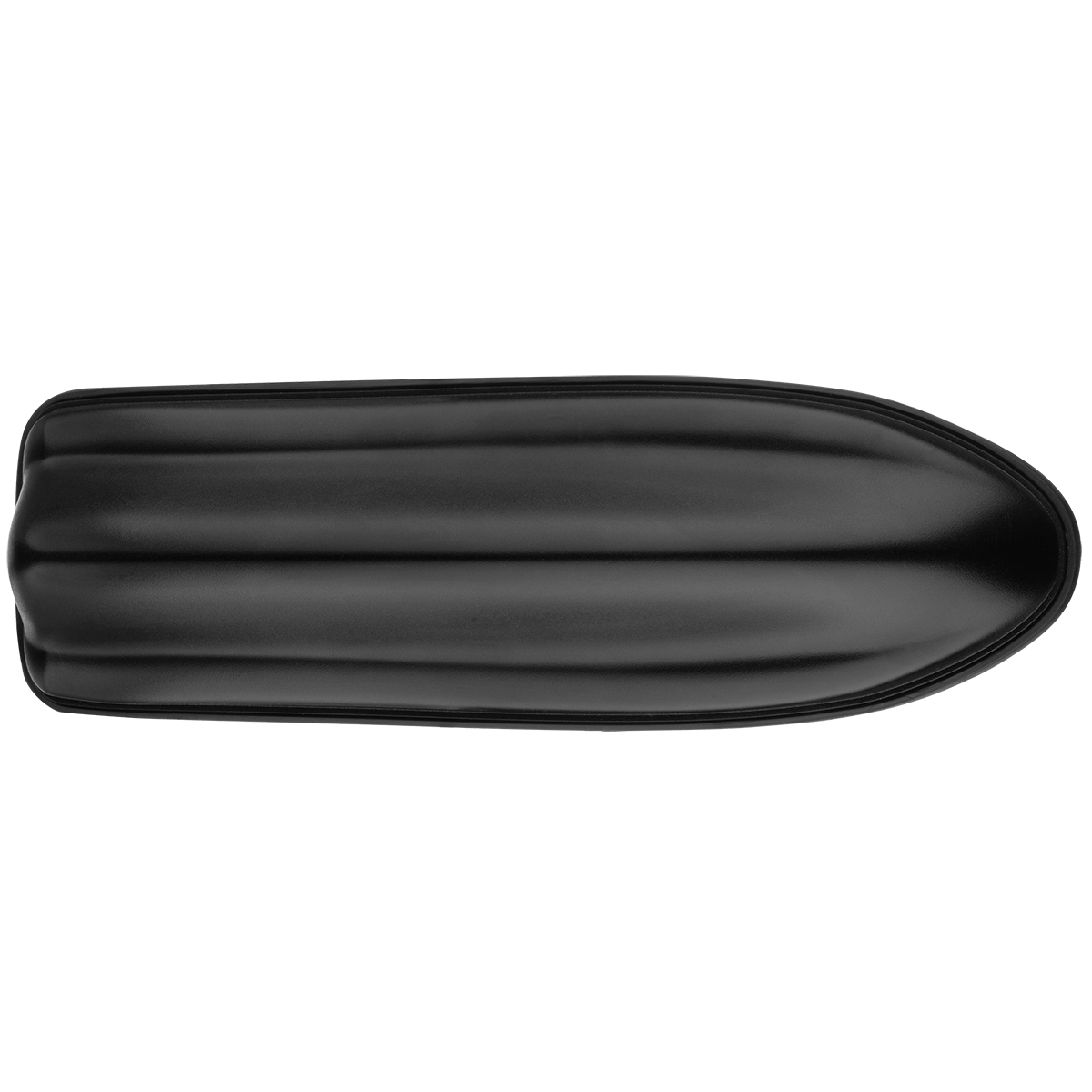

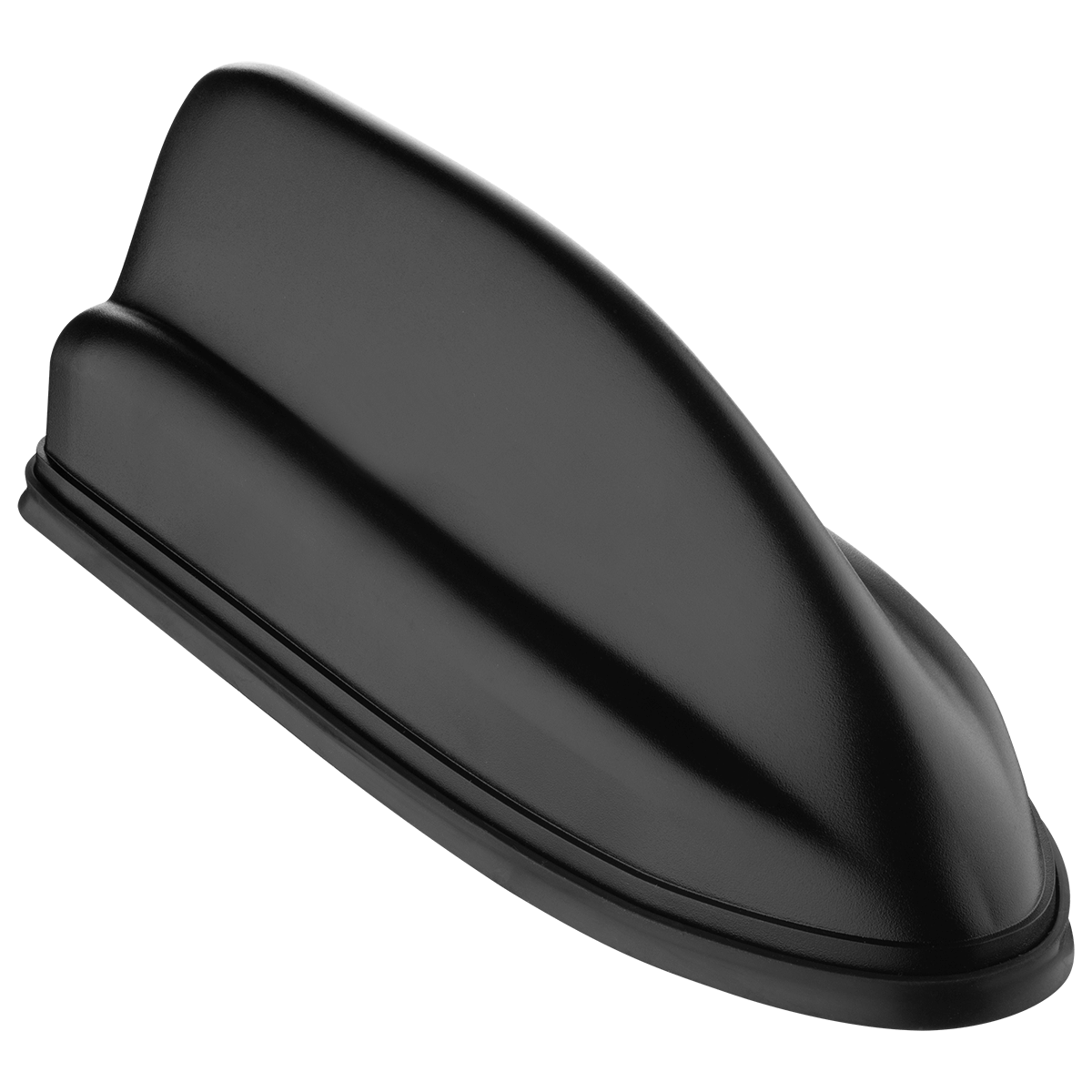

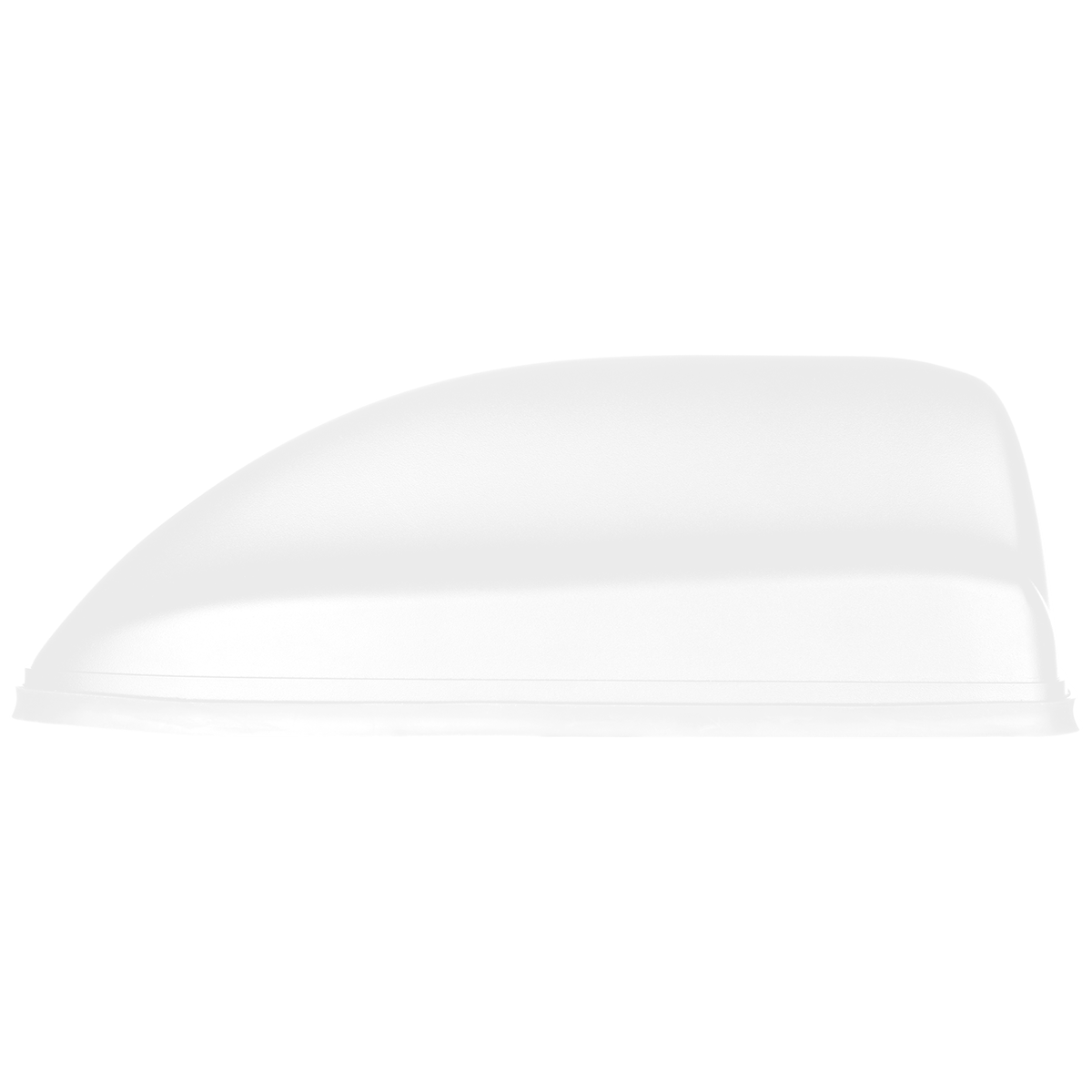

MULTIMAX™ 5G

SKU: MF5G

 2×2 MIMO 5G with up to 7-in-1 High Performance IP67/IP69K Antenna

15% off First Order Promo

  • 2x 2x
  • 4x 4x
  • 1x 1x
Request a quote
SKU: MF5G Categories: 5G Connectivity, EZConnect, Fleet & Public Safety,



A rugged outdoor antenna, MULTIMAX 5G is designed to provide high performance LTE and 5G connectivity for Fleet and Public Safety vehicles and assets. Equipped with up to 7 ports, this antenna connects to virtually any vehicular router or modem.

The MULTIMAX 5G features the new EZConnect™ platform, a versatile antenna design with 1-foot cables and standard connectors that connect seamlessly to a customizable cable harness. This added flexibility minimizes the impact of lead times and minimum order quantities (MOQs) with better availability to meet customer demand and increased configuration options. Select from the common part numbers below or click the CONFIGURE button to build your own.

15% off First Order Promo

COMMON PART NUMBERS (inquire to Airgain for other configurations):

*Requires EZConnect Cable Harness

*AP-MF5G-C2W4G-[x]-B1  EZConnect Antenna with MIMO LTE/5G x 2, Wi-Fi x 4 & GNSS, Black, 1 foot coax
[z]-C2W4G-1-2-1-14  EZConnect Cable Harness with Cell x 2, Wi-Fi x 4, GNSS, SMA on Cell & GNSS, RP-SMA on Wi-Fi, 14 feet length
*AP-MF5G-C2W3G-[x]-B1  EZConnect Antenna with MIMO LTE/5G x 2, Wi-Fi x 3 & GNSS, Black, 1 foot coax
[z]-C2W3G-1-2-1-14  EZConnect Cable Harness with Cell x 2, Wi-Fi x 3, GNSS, SMA on Cell & GNSS, RP-SMA on Wi-Fi, 14 feet length
*AP-MF5G-C2W2G-[x]-B1  EZConnect Antenna with MIMO LTE/5G x 2, Wi-Fi x 2 & GNSS, Black, 1 foot coax
[z]-C2W2G-1-2-1-14  EZConnect Cable Harness with Cell x 2, Wi-Fi x 2, GNSS, SMA on Cell & GNSS, RP-SMA on Wi-Fi, 14 feet length
*AP-MF5G-C2WG-[x]-B1  EZConnect Antenna with MIMO LTE/5G x 2, Wi-Fi & GNSS, Black, 1 foot coax
[z]-C2WG-1-2-1-14  EZConnect Cable Harness with Cell x 2, Wi-Fi, GNSS, SMA on Cell & GNSS, RP-SMA on Wi-Fi, 14 feet length
*AP-MF5G-C2G-[x]-B1  EZConnect Antenna with MIMO LTE/5G x 2 & GNSS, Black, 1 foot coax
[z]-C2G-1-1-14  EZConnect Cable Harness with MIMO/ Cell x 2 & GNSS, SMA on Cell & GNSS, 14 feet length
*AP-MF5G-CWG-[x]-B1  EZConnect Antenna with LTE/5G, Wi-Fi & GNSS, Black, 1 foot coax
[z]-CWG-1-2-1-14  EZConnect Cable Harness with Cell, Wi-Fi, GNSS, SMA on Cell, Wi-Fi & GNSS, 14 feet length
*AP-MF5G-C2-[x]-B1  EZConnect Antenna with MIMO LTE/5G x 2, Black, 1 foot coax
[z]-C2-1-14  EZConnect Cable Harness with Cell x 2, SMA on Cell, 14 feet length
*AP-MF5G-CG-[x]-B1  EZConnect Antenna with LTE/5G & GNSS, Black, 1 foot coax
[z]-CG-1-1-14  EZConnect Cable Harness with Cell, GNSS, SMA on Cell & GNSS, 14 feet length
*AP-MF5G-CW-[x]-B1  EZConnect Antenna with LTE/5G & Wi-Fi, Black, 1 foot coax
[z]-CW-1-2-14  EZConnect Cable Harness with Cell, Wi-Fi, SMA on Cell, RP-SMA on Wi-Fi, 14 feet length

Mounting Options [x]:

Q Threaded Bolt Mount (includes pre-attached mounting foam for uneven surfaces)
A Adhesive Mount
M Magnetic Mount

EZConnect Cable Harness [z]:

CH Inquire to distributor for select SKUs
CCH Custom Cable Harness with cable lengths up to 34 feet, and other variations

Also available in color white. For mounting instructions please visit https://www.airgain.com/installation-and-removal-guides/

Electrical Data (Performance results are measured in a test chamber with 1' LMR-100 cables and over a 2'x2' ground plane)
Frequency RangeElements 1 up to 2: 617-960/1700-2700/3300-4200/5150-5850 MHz
-Elements 3 up to 6: 2.4/5.15-7.125 GHz
-Element 7 (optional): 1550~1610 MHz
Operational BandsElements 1 up to 2: 5G (Band 71, LTE, CBRS, LAA)
-Elements 3 up to 6: Wi-Fi 6E
-Element 7 (optional): GPS L1/GALILEO E1/GLONASS G1/BeiDou B1/QZSS L1
Peak Gain: IsotropicElements 1 up to 2: 617-960 MHz 5.6 dBi; 1710-2700 MHz 5.6 dBi; 3300-4200 MHz 6.8 dBi; 5150-5850 MHz 6.8 dBi
-Elements 3 up to 6: 2.4 GHz 7.4 dBi; 5-7 GHz; 10.6 dBi
-Element 7 (optional): 35.8 dBi
IsolationElements 1 up to 2: > 9 dB
-Elements 3 up to 6: > 11 dB
Average EfficiencyElements 1 up to 2: 617-960 MHz, >62%; 1710-2700 MHz, >60%; 3300-4200 MHz, >62%; 5150-5850 MHz, >48%
-Elements 3 up to 6: 2.4 GHz, >47%; 5-7 GHz, >48%
Correlation Co-efficientElements 1 up to 2: 617-960 MHz, <0.56; 1710-2700 mhz, <0.5; 3300-5850 <0.3
Environmental Data
Hazardous SubstancesRoHS Compliant
Temperature-40ºC to 85ºC (-40ºF to + 185ºF) Operating and Storage conformance to SAE J1455 4.1.1.5A
Humidity (Non-Condensing)60ºC and 95% RH Operating and Storage conformance to MIL-STD 810F Method 507.4
Water IngressIP67 and IP69K
VibrationConformance to SAE J1455 4.10.4.2
Mechanical ShockConformance to ISO 16750-3
Mechanical
DimensionsHeight: 3.08” (78.2mm)
-Width: 3.07” (78.0mm)
-Length: 9.11” (231mm)
ColorBlack (BL) or White (WH)
Cable
CellType: LMR-100 Low Loss
-Diameter: 0.110” (2.79mm)
-Length: 1 ft (0.3m)
-Termination: SMA Male
Wi-FiType: LMR-100 Low Loss
-Diameter: 0.110” (2.79mm)
-Length: 1 ft (0.3m)
-Termination: SMA Female
GNSS Type: LMR-100 Low Loss
-Diameter: 0.110” (2.79mm)
-Length: 1 ft (0.3m)
-Termination: FME Female
GNSS Data – Ceramic Patch Antenna Specification
Bandwidth1558 – 1610 MHz
Gain@Zenith0 dBi
PolarizationR.H.C.P.
Axial Ratio3.0 dB Typ.
GNSS Data – LNA Specification
Noise Figure1.2 dB
Gain35 dBi
Voltage1.6V~10V
Current9±2mA@3.3V
