OMNIMAX Outdoor Dipole 5G Antenna

5G Candlestick Outdoor Antenna

  • 1x 1x
Request a quote
Categories: M2M & IoT, Private Networks,

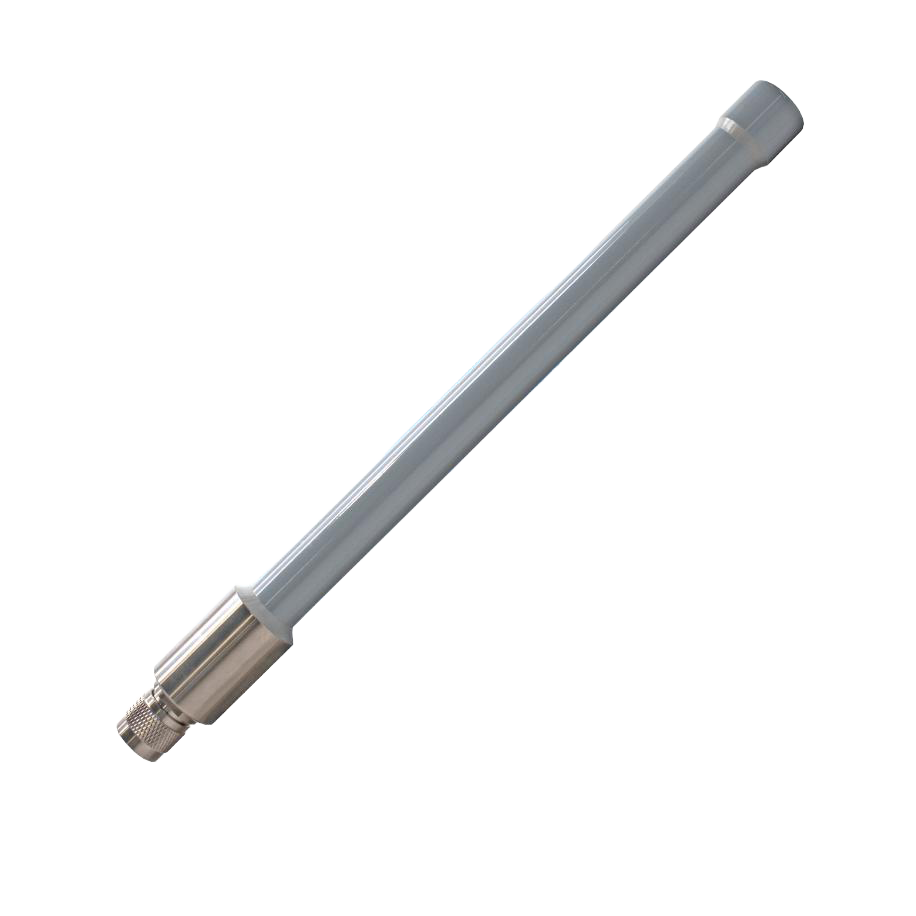

The AP-Dipole-Next-C-O-S6-GR dipole antenna is an ultra-wideband 5G externally mounted antenna providing high efficiency for IoT and M2M applications for cellular modules, modems, and gateways. This antenna outperforms competing products on the market and provides coverage for all cellular standards including CDMA, DCS, PCS, and GSM 2G, 3G, 4G, and 5G frequency bands in use globally.


Configuration

AP-Dipole-Next-C-O-S6-GR Cell/5G, Outdoor Antenna, N-Plug (Male) connector, Grey
AP-Dipole-Next-C-O-S6-F-GR Cell/5G, Outdoor Antenna, N-Jack (Female) connector, Grey
Specifications and Interface
Standard2G, 3G, 4G/LTE, 5G (Band 71, LTE, CBRS, LAA)
Frequency Range617 MHz – 6.0 GHz
Peak Gain-0.1 dBi @ 617 MHz; 0.3 dBi @ 850 MHz ,1.7 dBi @ 1450 MHz, 2.0 dBi @ 1750 MHz, 2.8 dBi @ 1950 MHz, 4.3 dBi @ 2250 MHz, 5.5 dBi @ 2450 MHz, 3.6 dBi @ 3700 MHz, 4.0 dBi @ 5500 MHz
Feed Impedance50 ohms
Power Handling30 dBm
Interface50 ohms, N-Plug (M) N-Jack (F)
Dimensions28.0 mm x 300 mm
Temperature RangeOperating -40°C to +85°C
-Storage -40°C to +85°C
Humidity Range5 to 95%
Optional Mounting Accessory
AP-Bracket-U2-DipoleDesigned to mount to a standard 2″ pipe, Galvanized Steel U-Bolt
