AirgainConnect® Fleet™

SKU: AC-Fleet

5G Vehicle Gateway

Request a quote
SKU: AC-Fleet Categories: 5G Connectivity, Antenna Plus® Antennas, Fleet & Public Safety,

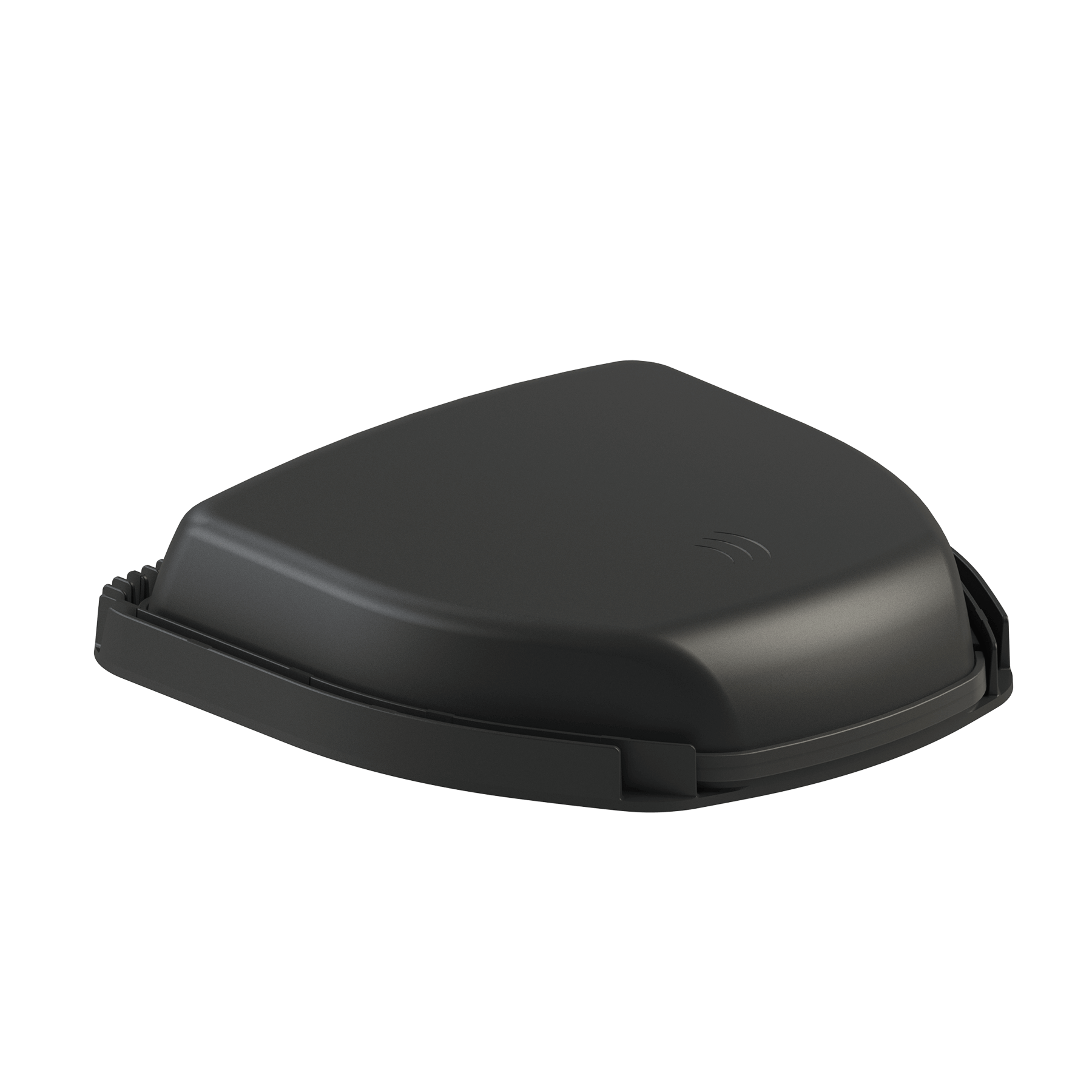

AirgainConnect Fleet, or AC-Fleet™, is an integrated 5G modem, Wi-Fi 6 router and high performance antenna solution designed for mounting to the roof of any vehicle. The compact housing has been certified to thrive in the most rugged outdoor conditions and is a mere 2 inches (5.1 cm) tall to be more covert and less obstructive. Manage each device locally or manage a fleet of devices remotely with a subscription to Airgain’s cloud services.

PART NUMBERS

CY-AF5G-B-NAT AC-Fleet 5G vehicle gateway, black, 1 foot Ethernet and power cables, bolt mount with pre-attached mounting foam, first year of cloud subscription and limited warranty included
CY-AF5G-W-NAT AC-Fleet 5G vehicle gateway, white, 1 foot Ethernet and power cables, bolt mount with pre-attached mounting foam, first year of cloud subscription and limited warranty included
CY-AFC1 1 year cloud subscription for AC-Fleet (includes up to a 5 year limited device warranty)
CY-AFC2 2 year cloud subscription for AC-Fleet (includes up to a 5 year limited device warranty)
CY-AFC3 3 year cloud subscription for AC-Fleet (includes up to a 5 year limited device warranty)
CY-AFC4 4 year cloud subscription for AC-Fleet (includes up to a 5 year limited device warranty)
CY-AFC5 5 year cloud subscription for AC-Fleet (includes up to a 5 year limited device warranty)
CY-AFCL Optional cigarette lighter power adapter for AC-Fleet with 15 feet of cable
CY-AFWM Optional wall mount AC/DC power adapter for AC-Fleet with 10 feet of cable
AP-MAG Optional universal magnetic mount adapter, compatible with AC-Fleet
AP-SCM Optional universal suction mount adapter, compatible with AC-Fleet
AP-XTQ Optional 1.25” bolt adapter for installation on thicker roofs

For mounting instructions please visit https://www.airgain.com/installation-and-removal-guides/.

Connectivity Data
CellularModem: 5G NR FR1 and 4G LTE Cat 19 DL / Cat 18 UL
-MIMO: 4x4 DL and 2x2 UL
-eSIM: SGP.x2 compliant MFF2 with preloaded 10-year / 500mB bootstrap profile which allows for downloading up to 4 additional MNO profiles
EthernetLAN: 1 x 1.0 GbE
-Cable: 1 ft non-removable, flat, shielded CAT6 with male RJ45 connector (female-to-female RJ45 coupler included)
Wi-FiBands: Dual-band simultaneous Wi-Fi 6 (2.4 & 5-6 GHz)
-MIMO: 2x2 Multi-User (MU-MIMO)
-Standard: Complies with IEEE 802.11ax
-Clients: Up to 64
GNSSBands: L1 GPS/Glonass/Beidou/Galileo
-Transmission: Integrated LNA and passive antenna
Environmental Data
TemperatureOperating: -30ºC to 70ºC (-22ºF to 158ºF)* Storage: -40ºC to 85ºC (-40ºF to 185ºF) *reduced performance when operating at or above 70°C
Humidity (Non-Condensing)95% RH at 60ºC Operating and Storage
Ingress ProtectionIP67 (dust tight and water immersion up to 1 meter) IP69K (dust tight and up to 80ºC high pressure water jets)
CorrosionIEC 60068-2-52 and SAE J2334 salt spray
Shock and VibrationConformance to ISO MIL-STD-810G, SAE J1455 and EN61373
Power Data
SpecificationsInput Voltage: 7-36 VDC with software configurable minimum operating voltage to prevent dead vehicle battery (capable of operating at 5V during transient events)
-Ignition Sense: Automatic power-up and configurable power-down timer

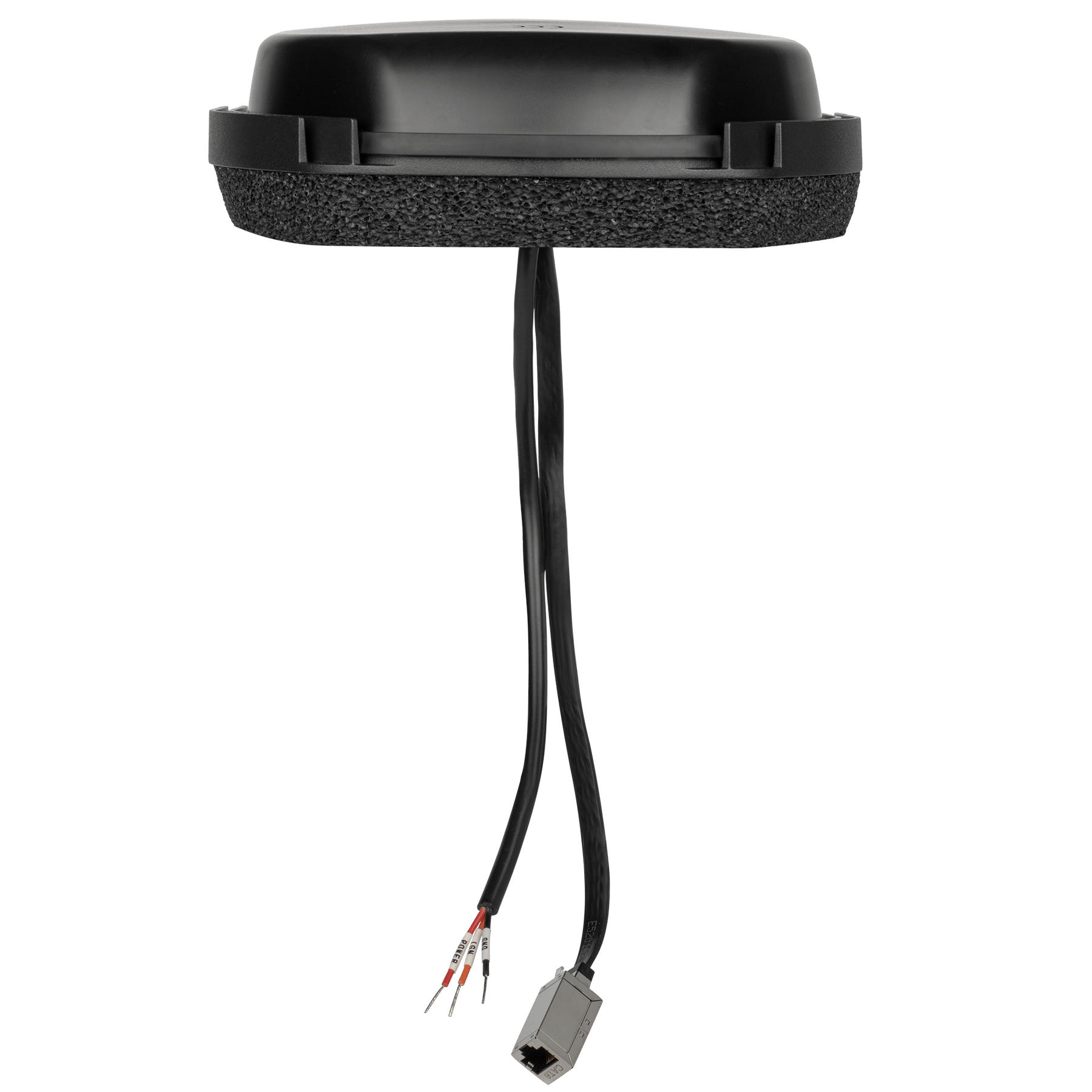

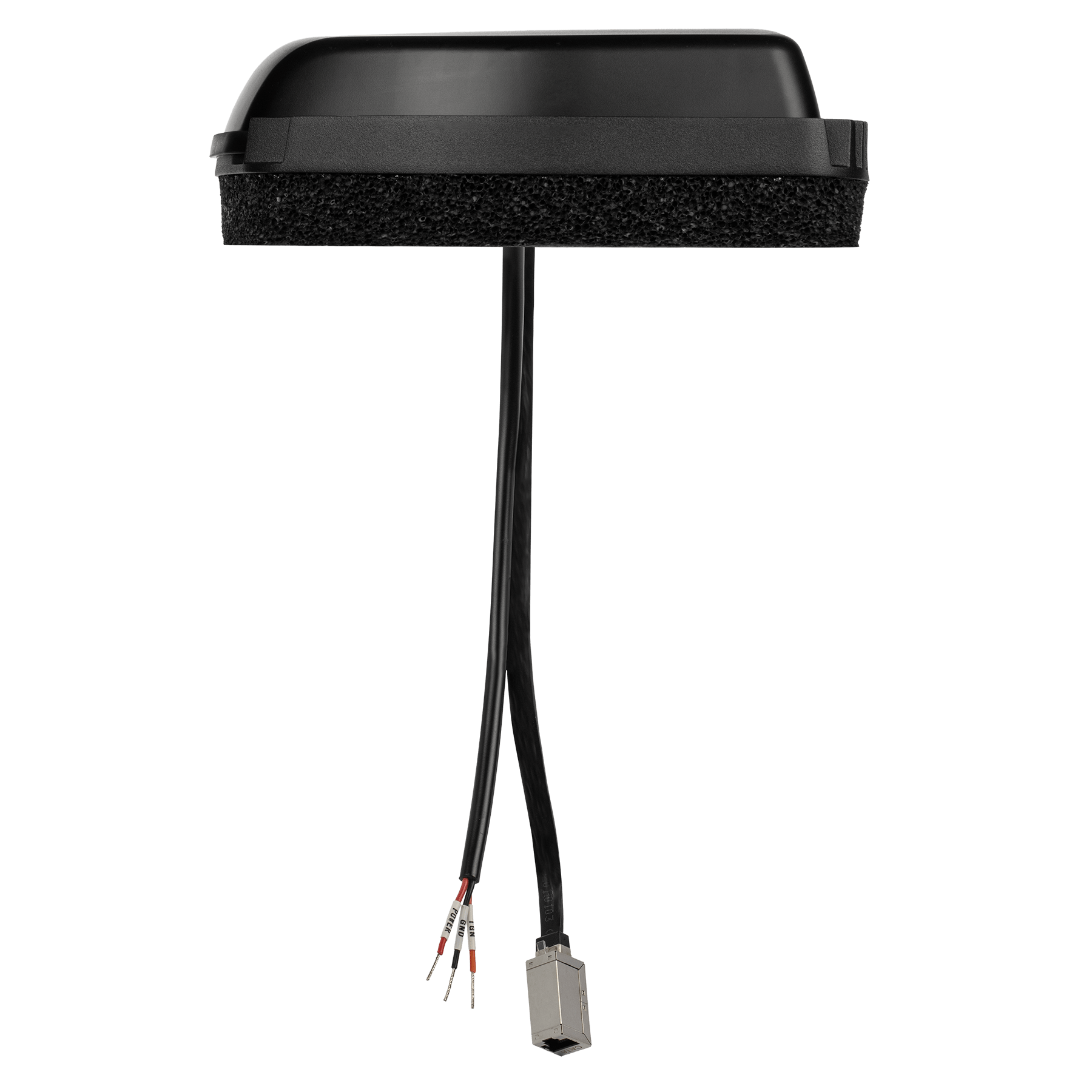

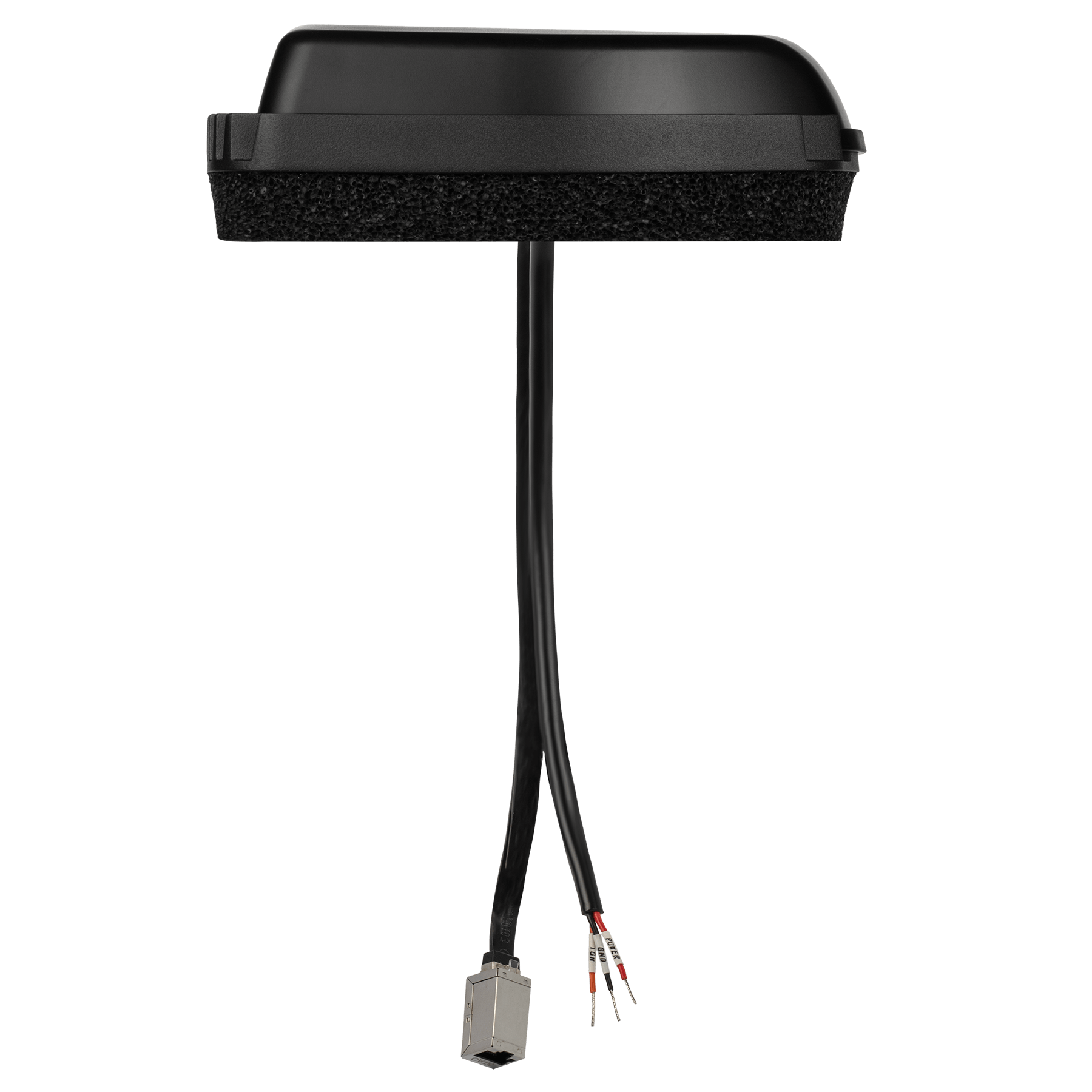

-Cable: 1 ft non-removable, shielded multi-conductor with exposed power (red), ground (black) and ignition sense (white) wires
-Compliance: ISO 7637-2, ISO 16750-2 and IPC-9592B Class II
Consumption (@12V)Standby Mode (Vehicle Off): 0.66 W
-Idle: 10 W
-Peak: 15 W
Mechanical Data
DimensionsHeight: 2.00” (50.8mm)
-Width: 8.59” (218.1mm)
-Length: 8.29” (210.6mm)
Weight2.9 lbs (1.33 kg)
Certifications
Safety IECEE Certification Bodies Scheme
-IEC 62368-1
VehicleMIL-STD-810G
-SAE J1455
-ISO 7637-2
-ISO 16750-2
MaterialsWEEE
-RoHS 2
-REACH
-California Prop 65
Reliability
MTBF30+ years (Telcordia SR-332 at 25C)
Software Configuration
Simplified configuration and remote management with separate basic and advanced mode settings
Optimize cellular connectivity with IMSI profile management and carrier/APN prioritization
Configure device as a wireless Access Point
Optional Depot Mode for Wi-Fi as WAN connectivity
Stream GNSS data to 3rd party platforms
Secure network with firewall
Manage user accounts
Install firmware and configuration settings
Download system logs
Cloud Services
Organize devices into an easy to manage group
Activate multiple devices at once
Monitor and configure devices remotely
Update firmware over the air
Enable event notifications
Manage cloud users
Download cloud logs

FCC:
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

● Reorient or relocate the receiving antenna.

● Increase the separation between the equipment and receiver.

● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

● Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

IMPORTANT NOTE:

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 53 cm between the radiator & your body.

IC:
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions:

(1) This device may not cause interference.

(2) This device must accept any interference, including interference that may cause undesired operation of the device.

Cet appareil contient des émetteurs / récepteurs exempts de licence qui sont conformes au (x) RSS (s) exemptés de licence d’Innovation, Sciences et Développement économique Canada. L’opération est soumise aux deux conditions suivantes:
(1) Cet appareil ne doit pas provoquer d’interférences.
(2) Cet appareil doit accepter toute interférence, y compris les interférences susceptibles de provoquer un fonctionnement indésirable de l’appareil.

IMPORTANT NOTE:

IC Radiation Exposure Statement:

This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 47 cm between the radiator & your body.

Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 47 cm de distance entre la source de rayonnement et votre corps.
