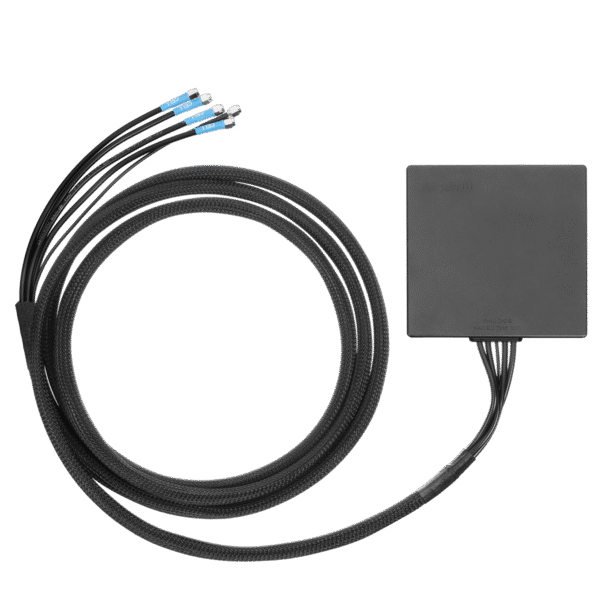

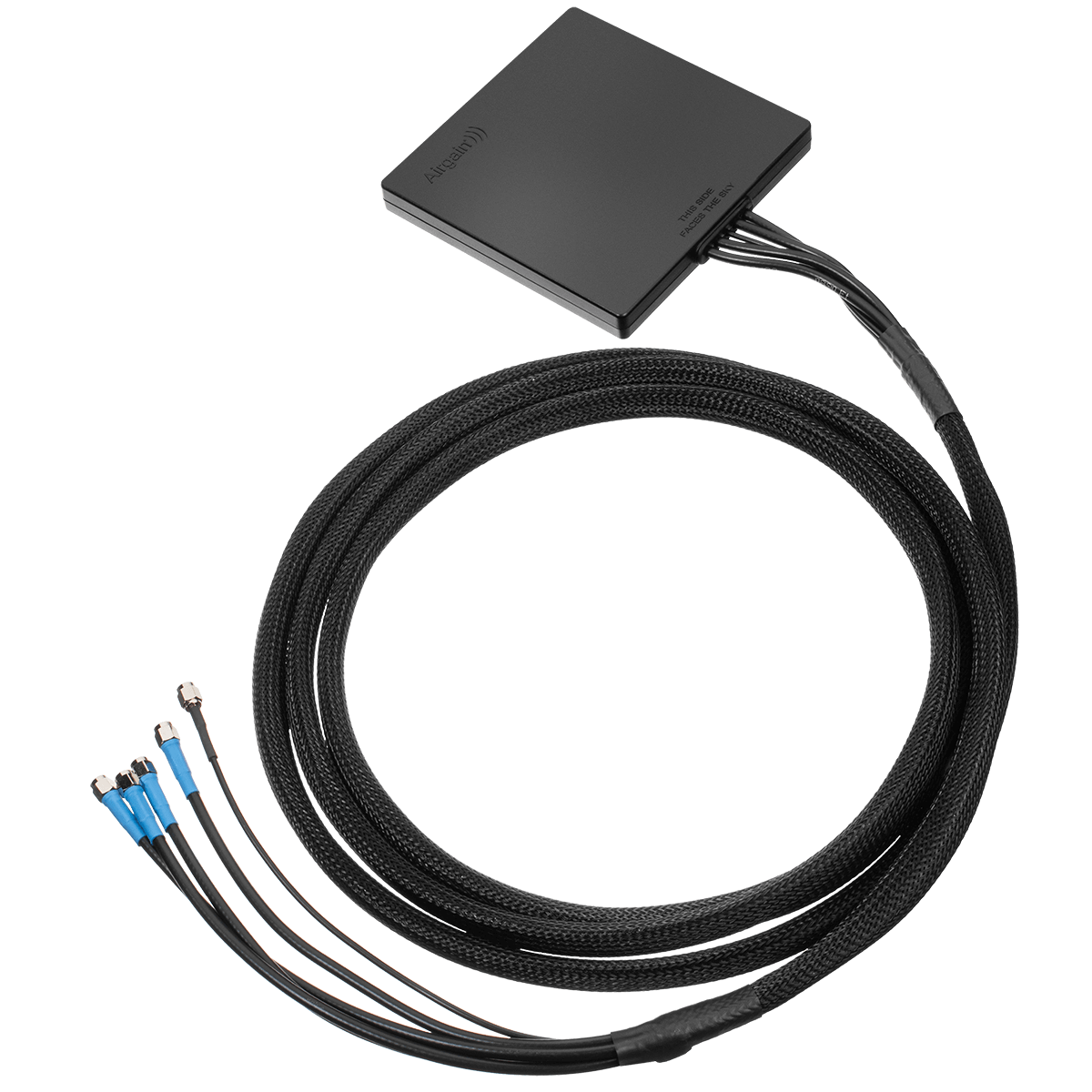

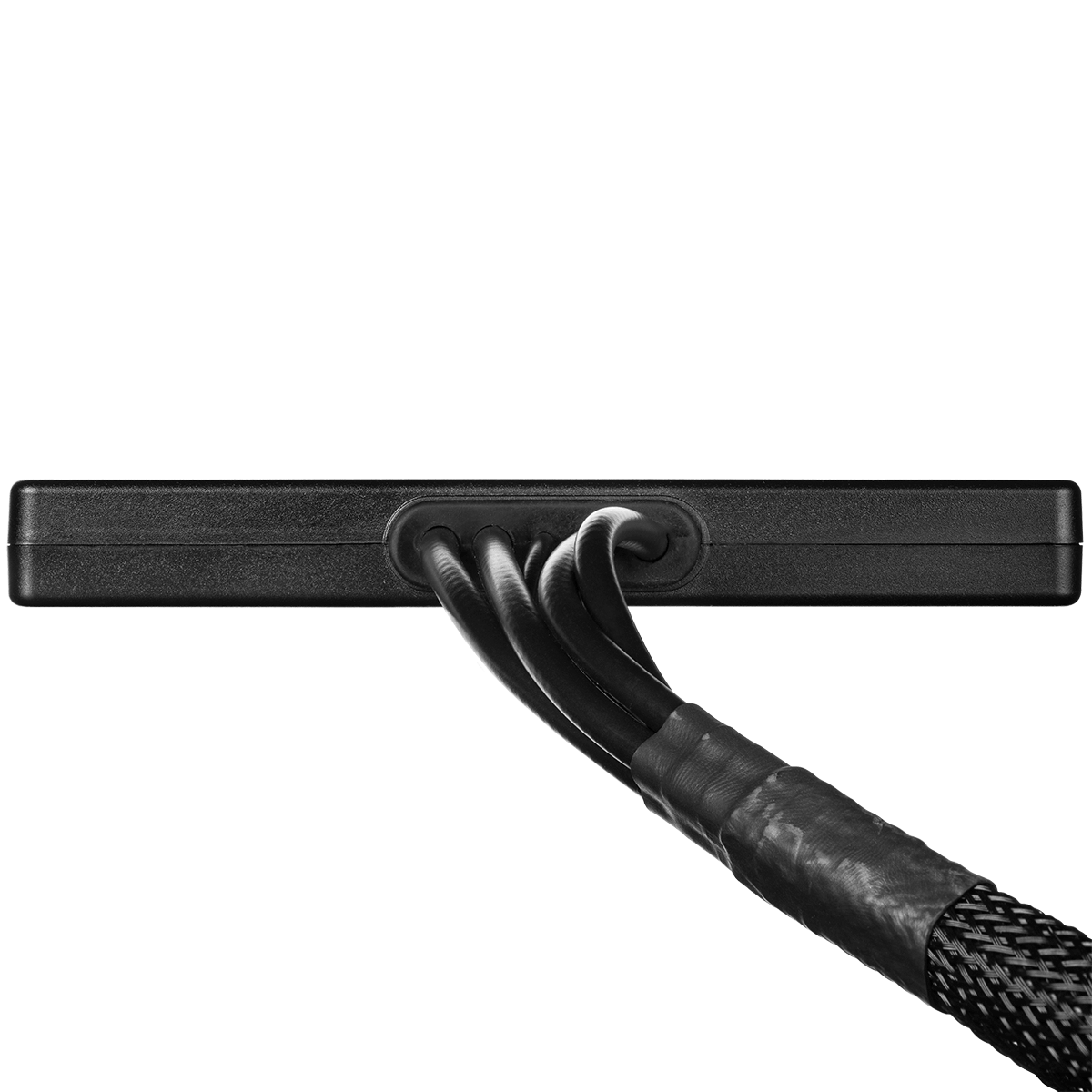

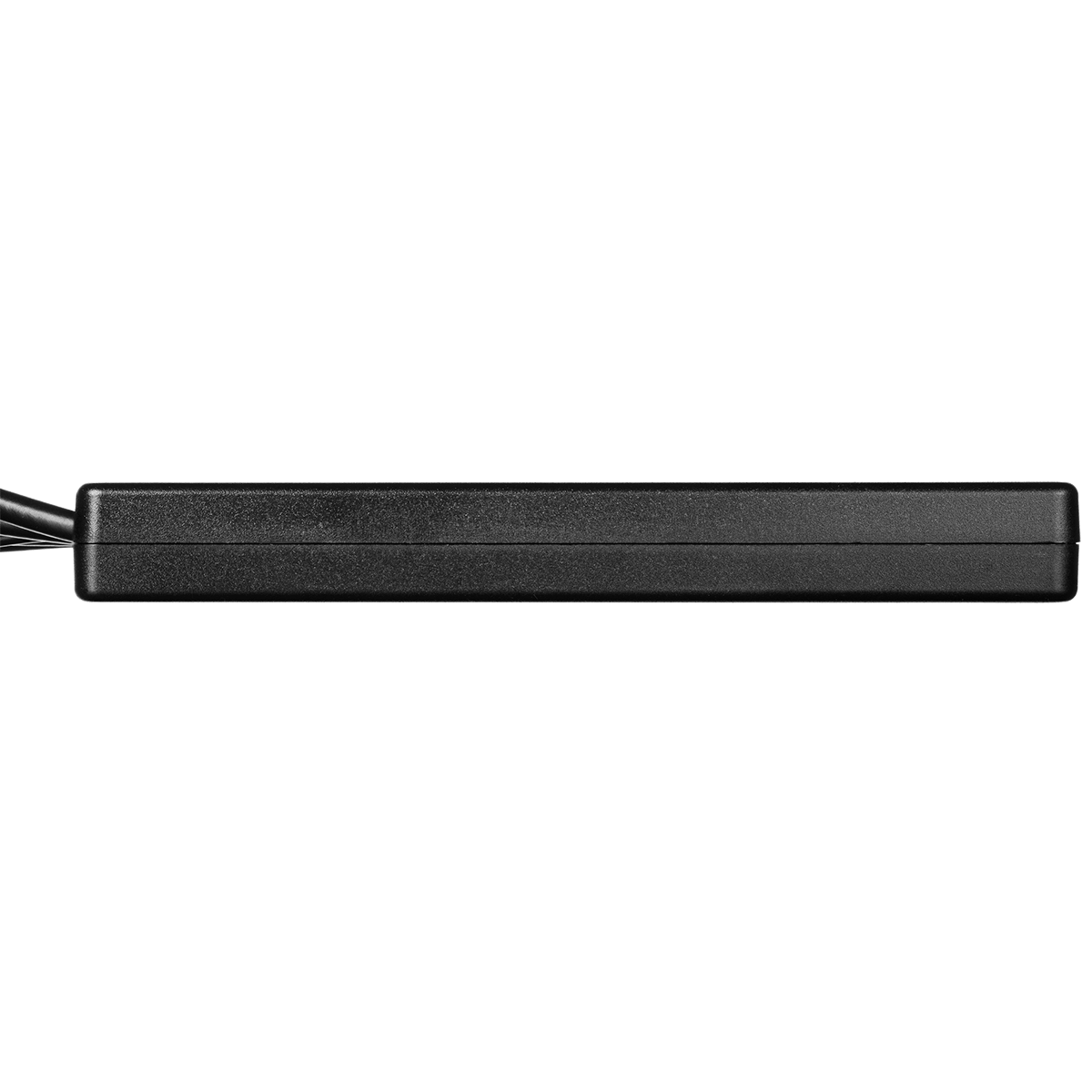

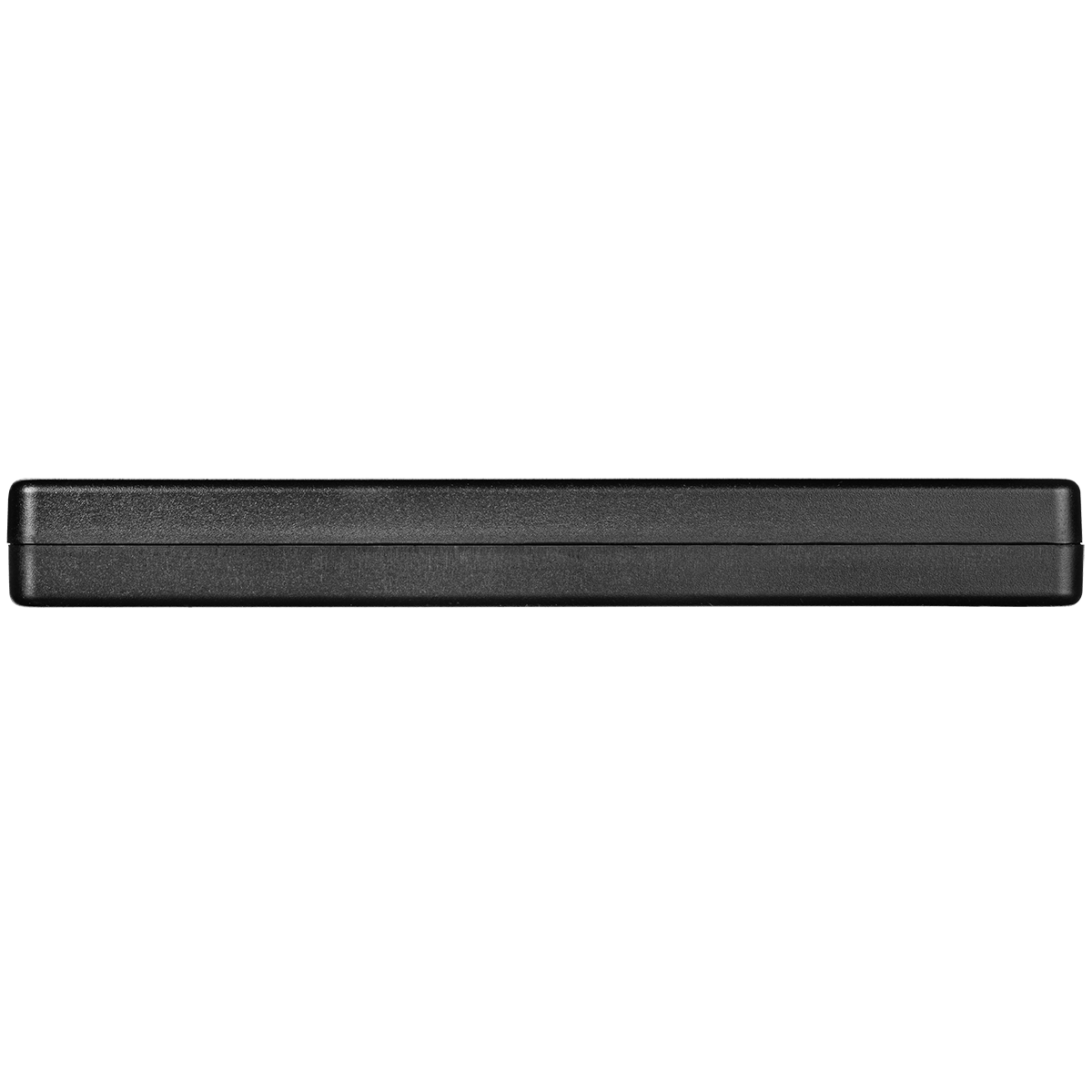

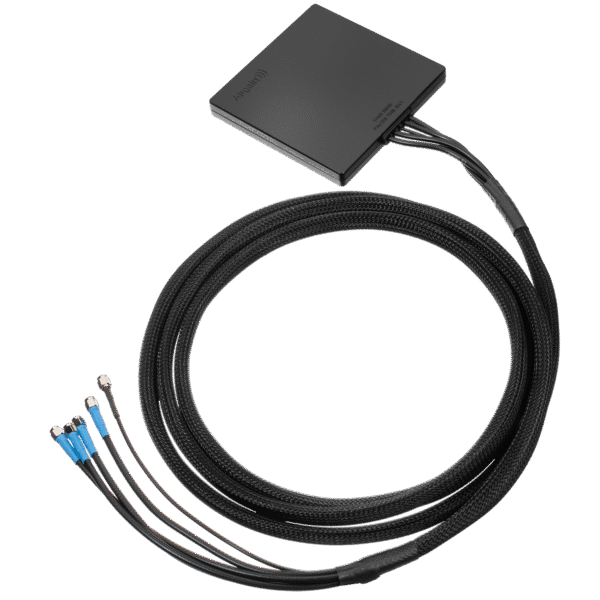

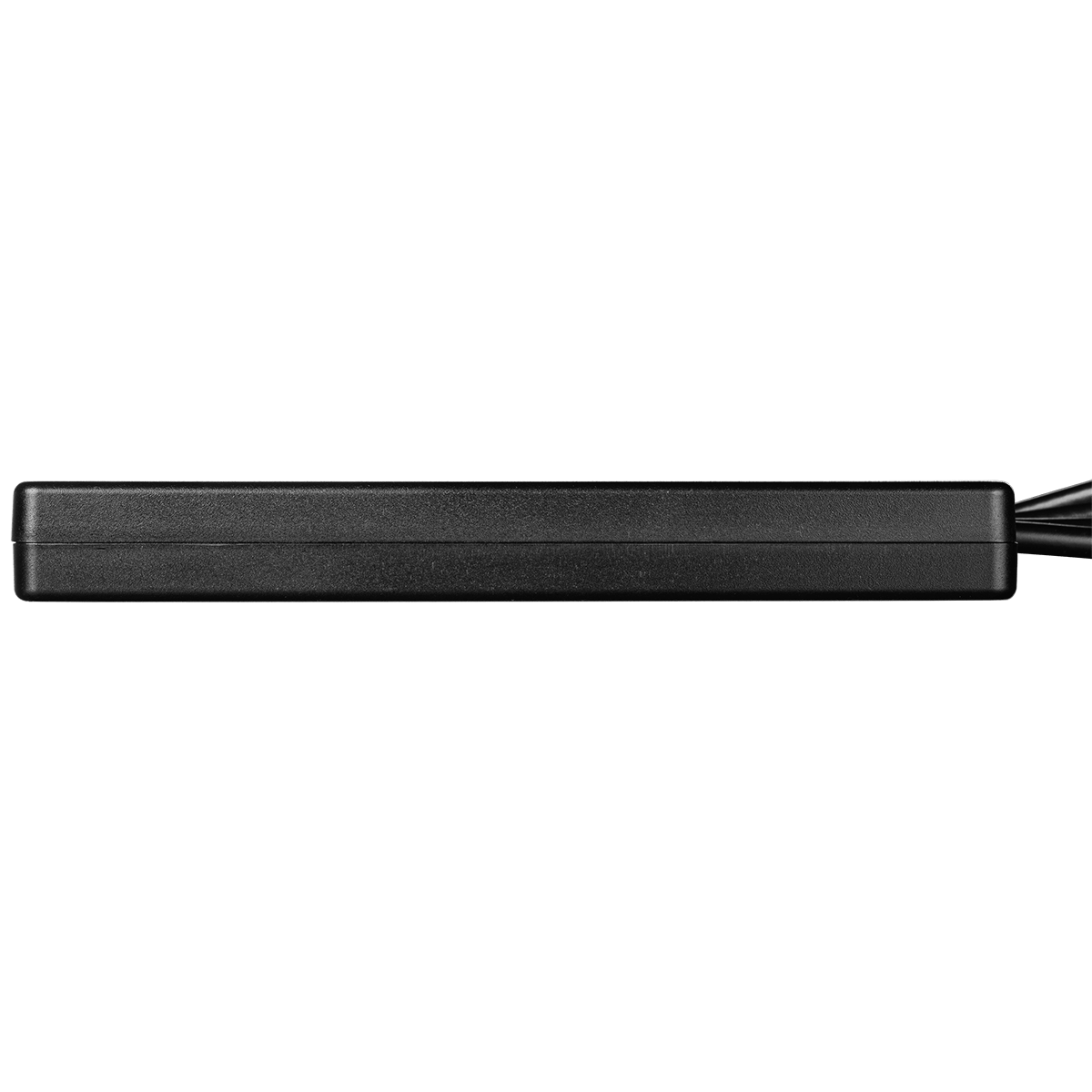

ULTRAMAX™ GLASS 5G

Up to 5-in-1 High Performance Windshield Mount Antenna

  • 4x 4x
  • 4x 4x
  • 1x 1x
Request a quote
Categories: 5G Connectivity, Antenna Plus® Antennas, EZConnect, Fleet & Public Safety, Tag:

ULTRAMAX Glass 5G is designed to provide high performance LTE and 5G connectivity for Fleet and Public Safety vehicles and assets. This antenna can be mounted on either the windshield or the dashboard and connects to virtually any vehicular router or modem.

PART NUMBER(S)

AP-GL5G-C4G-BL-10  MIMO LTE/5G (600 MHz-6 GHz) x 4 & GNSS, Adhesive Mount, SMA on Cell & GNSS, Black, 10ft LMR195 coax
AP-GL5G-C2W2G-BL-10  MIMO LTE/5G (600 MHz-6 GHz) x 2, Wi-Fi x 2 & GNSS, Adhesive Mount, SMA on Cell & GNSS, RP-SMA on Wi-Fi, Black, 10ft LMR195 coax
AP-GL5G-W4G-BL-10  MIMO Wi-Fi x 4 & GNSS, Adhesive Mount, RP-SMA on Wi-Fi, SMA on GNSS, Black, 10ft LMR195 coax
AP-GL5G-C4-BL-10  MIMO LTE/5G (600 MHz-6 GHz) x 4, Adhesive Mount, SMA on Cell, Black, 10ft LMR195 coax
AP-GL5G-C2WG-BL-10  MIMO LTE/5G (600 MHz-6 GHz) x 2, Wi-Fi x 1 & GNSS, Adhesive Mount, SMA on Cell & GNSS, RP-SMA on Wi-Fi, Black, 10ft LMR195 coax

For mounting instructions please visit https://www.airgain.com/installation-and-removal-guides/.

Electrical Data
Frequency RangeCell Elements 1 up to 4: 617-960/1700-2700/3300-4200/5150-5850 MHz
-Wi-FI Elements 1 up to 4: 2.4/5.15-7.125 GHz
-Element 5 (optional): 1550~1610 MHz
Operational BandsCell Elements 1 up to 4: 5G (Band 71, LTE, CBRS, LAA)
-Wi-Fi Elements 1 up to 4: Wi-Fi 6E
-Element 5 (optional): GPS L1/GALILEO E1/GLONASS G1/BeiDou B1/QZSS L1
Peak Gain: IsotropicCell Elements 1 up to 4: 617-960 MHz: 4.1 dBi; 1700-2700 MHz: 47.2 dBi; 3300-4200 MHz: 6.2 dBi; 5150-5850 MHz: 5.0 dBi
-Wi-Fi Elements 1 up to 4: 2.4 GHz, 4.4 dBi; 5-7 GHz, 5.6 dBi
-Element 5 (optional): 35.8 dBi
IsolationCell Elements 1 up to 4: 617-960 MHz: >8.0 dB; 1700-2700 MHz: >14.6 dB; 3300-4200 MHz: >19.0 dB; 5150-5850 MHz: >25.3 dB
-Wi-Fi Elements 1 up to 4: 2.4 GHz, >21.6 dB; 5-7 GHz, >25.3 dB
Average EfficiencyCell Elements 1 up to 4: 617-960 MHz, >58%; 1700-2700 MHz, >68%; 3300-4200 MHz, >66%; 5150-5850 MHz, >57%
-Wi-Fi Elements 1 up to 4: 2.4 GHz, >60%; 5-7 GHz, >60%
Correlation Co-efficientCell Elements 1 up to 4: 617-960 MHz: <0.18; 1700-5850 MHz: <0.3
Environmental Data
Hazardous SubstancesRoHS Compliant
Temperature-40ºC to 85ºC (-40ºF to + 185ºF) Operating and Storage
Humidity (Non-Condensing)60ºC and 95% RH Operating and Storage
Military SpecConformance to MIL-STD 810G
Mounting Data
DimensionsHeight: 5.5” (140mm)
-Width: 5.6” (142mm)
-Length: 0.66” (16.8mm)
ColorBlack (BL)
Adhesive Pad3M 5962VHB double sided adhesive tape for mounting on top or bottom surface of antenna
Cable Data
Cell/LTEType: LMR-195 Low Loss
-Diameter: 0.195” (4.95mm)
-Length: 10 ft (3.0m)
-Termination: SMA Male
Wi-FiType: LMR-195 Low Loss
-Diameter: 0.195” (4.953 mm)
-Length: 10 ft (3.0m)
-Termination: RP-SMA Male
GNSSType: RG-174U
-Diameter: 0.100″ (2.54 mm)
-Length: 10 ft (3.0m)
-Termination: SMA Male
GNSS Data- Ceramic Patch Antenna Specification
Bandwidth1558-1610 MHz
Gain@Zenith0 dBi
PolarizationR.H.C.P.
Axial Ratio3.0 dB Typ.
GNSS Data- LNA Specification
Noise Figure1.2 dB
Gain35 dBi
VSWR<2:1
Voltage1.6V~10V
Current9+/-2mA@3.3V
