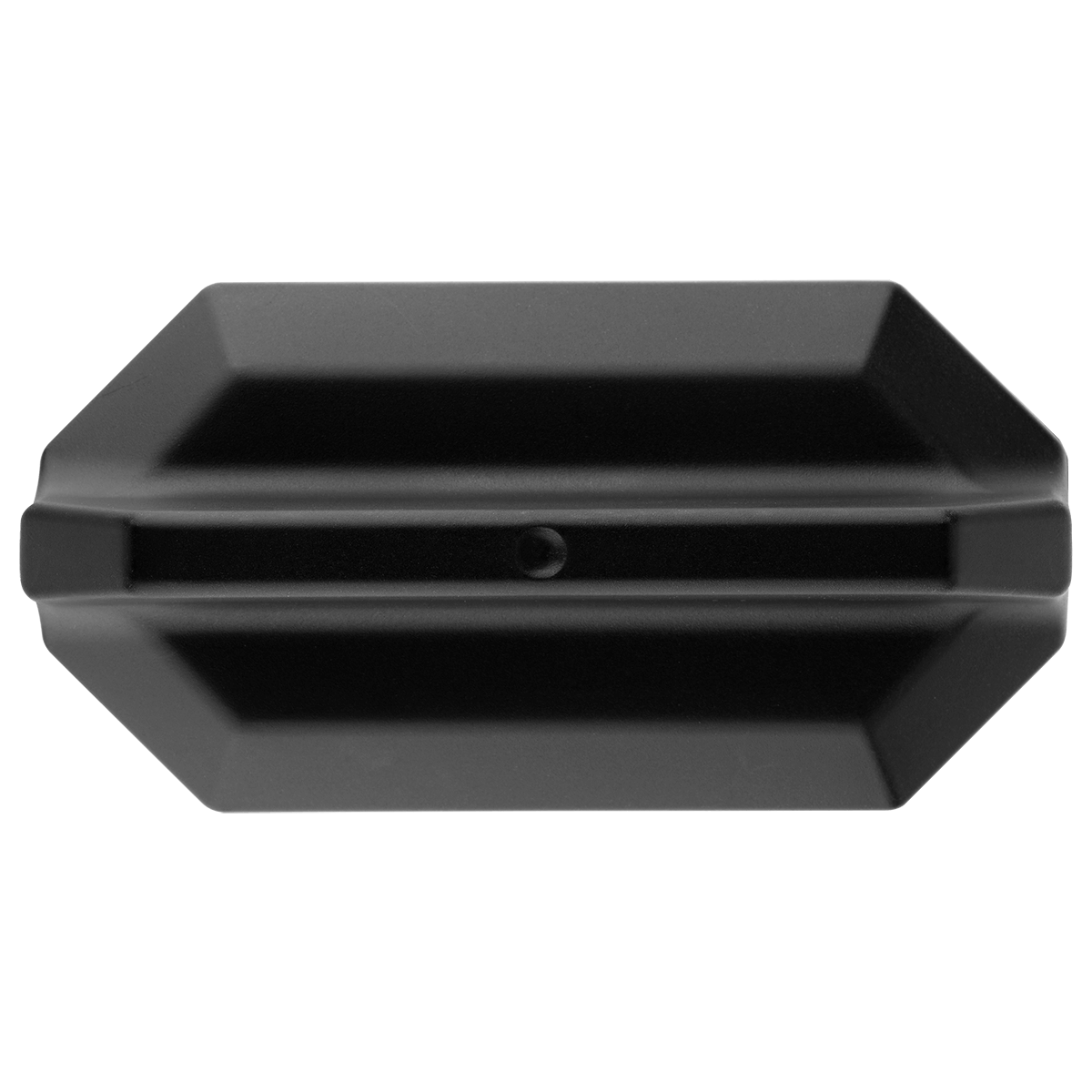

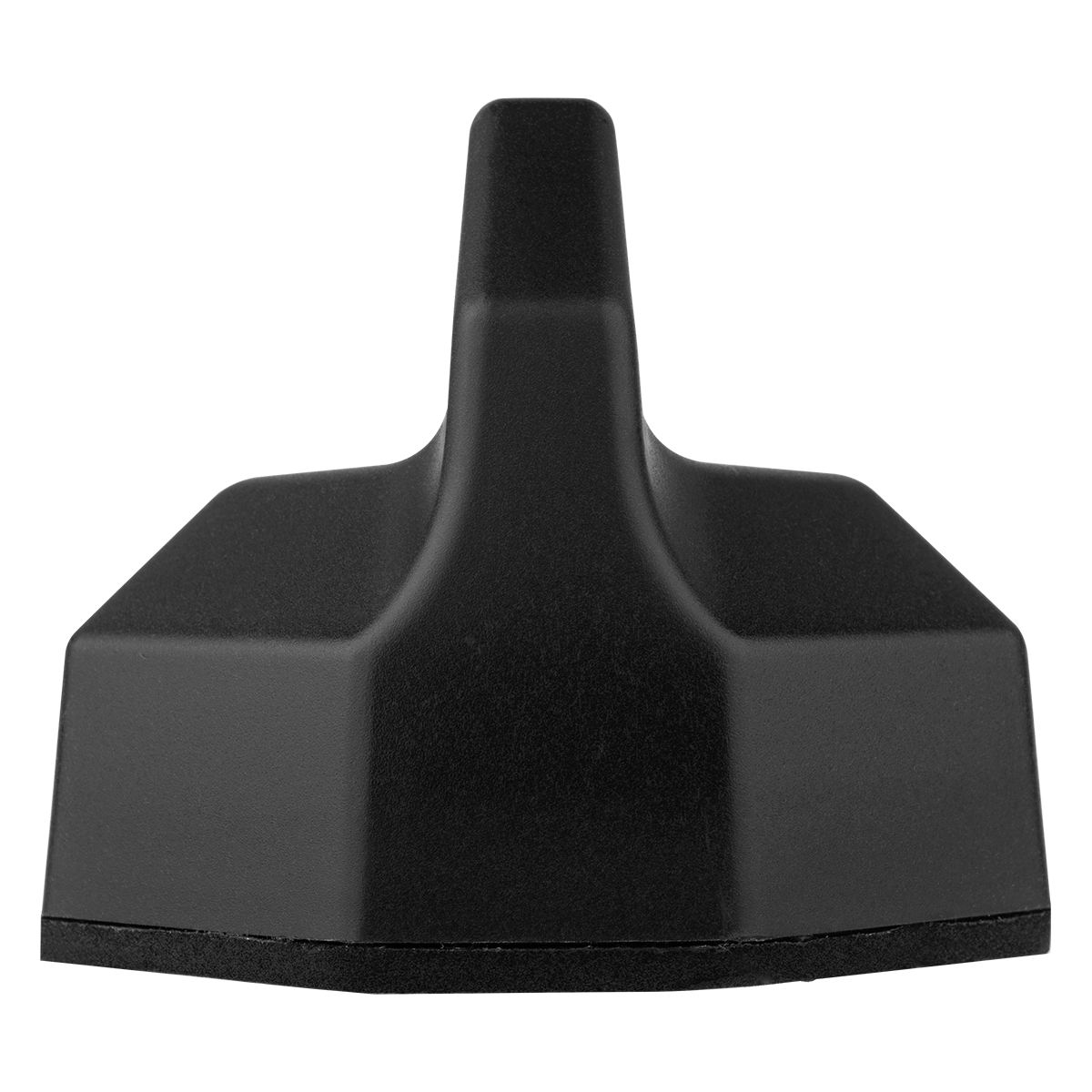

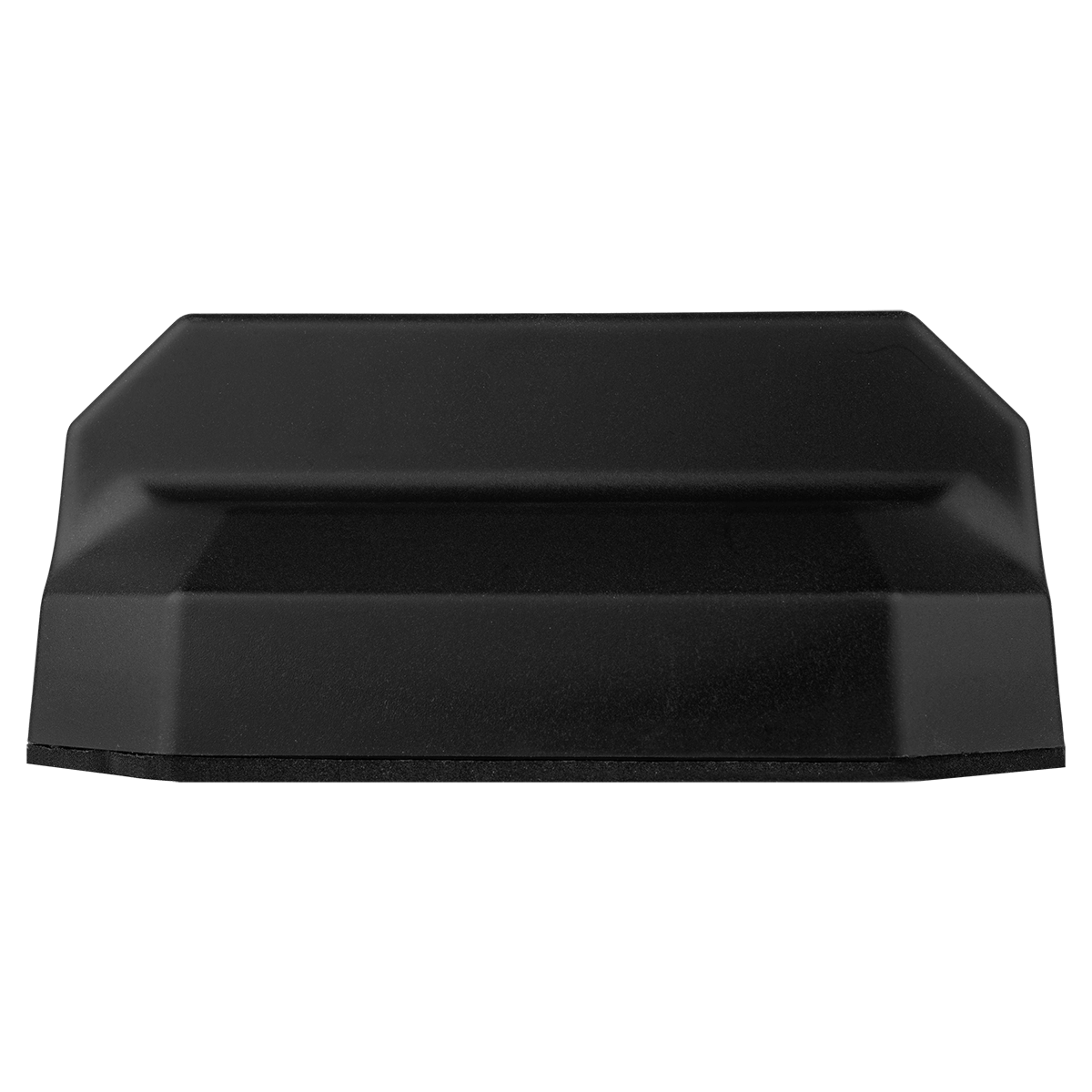

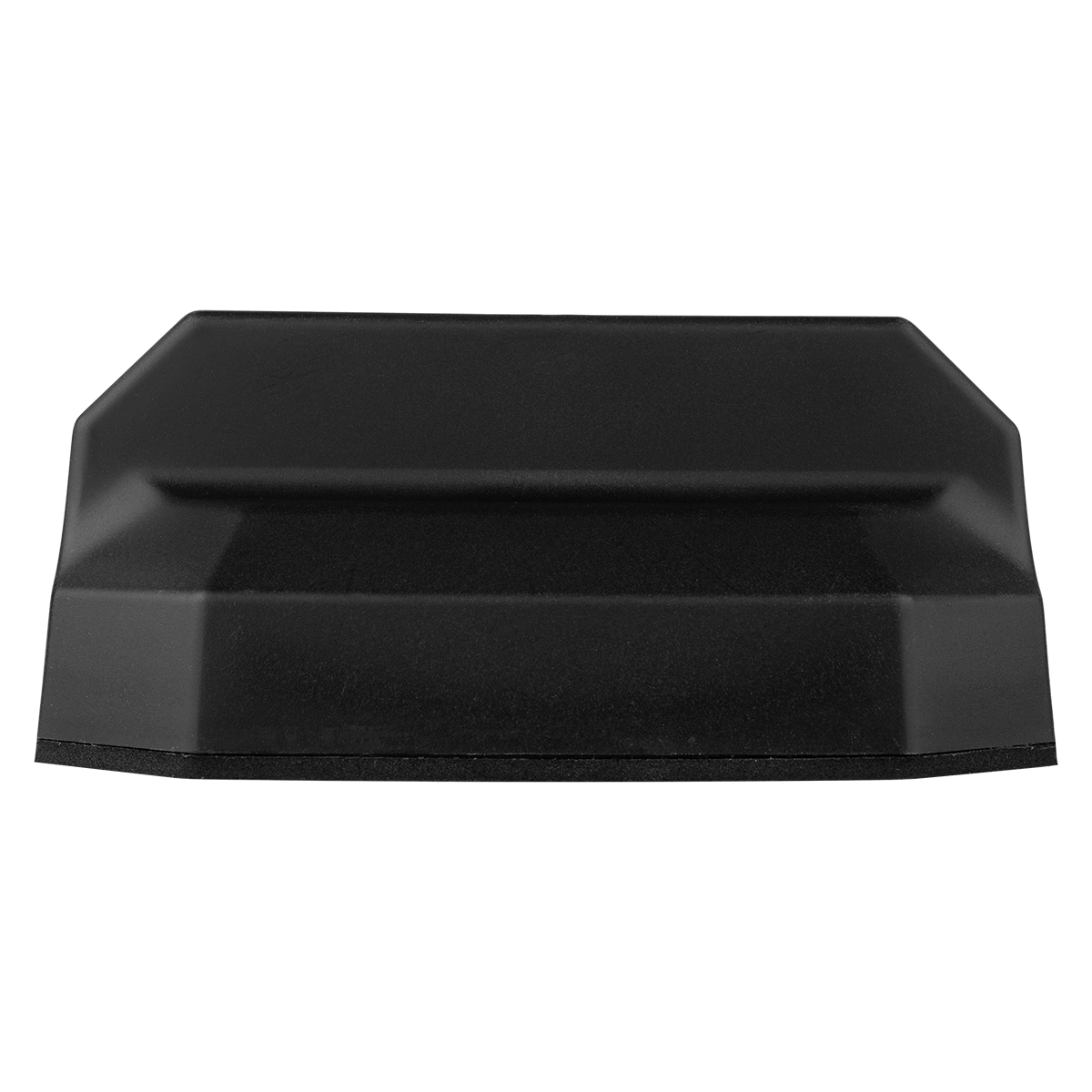

M2MAX

Up to 5-in-1 High Performance External IP67 Antenna

  • 2x 2x
  • 2x 2x
  • 1 1
Request a quote
Categories: M2M & IoT,

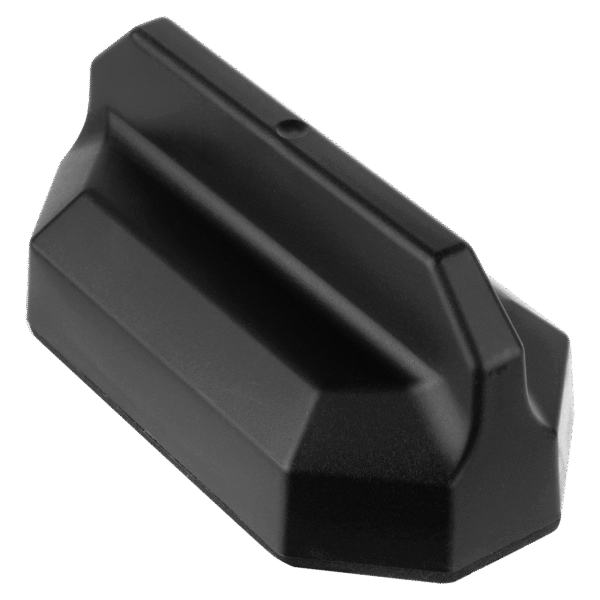

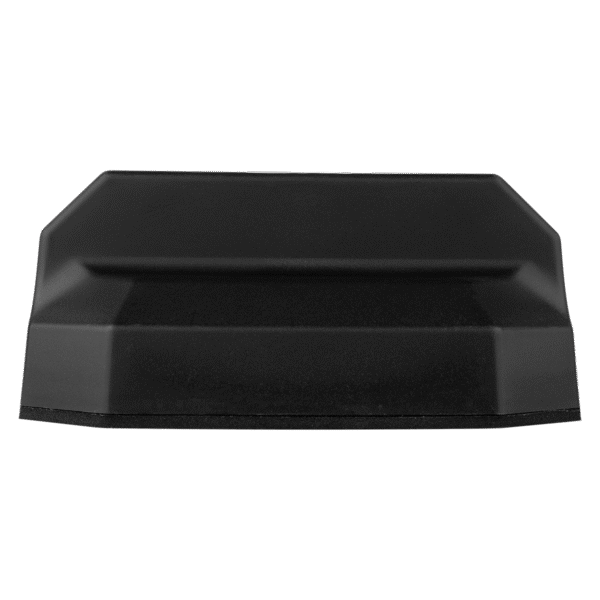

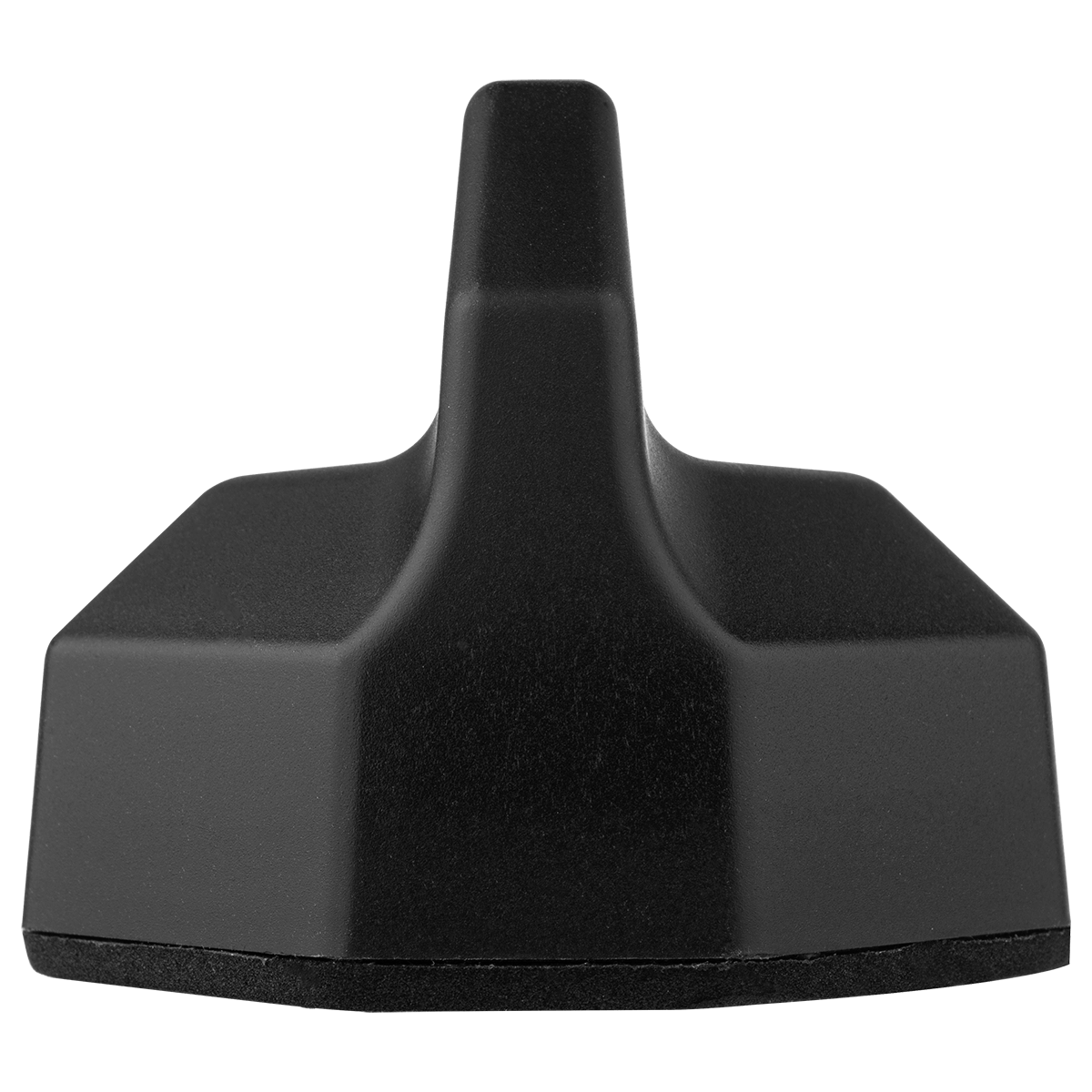

A rugged outdoor antenna, M2MAX is designed to provide high performance connectivity for wireless machine-to-machine applications. This antenna mounts to virtually any M2M or IoT enabled asset and requires no servicing through its lifetime.


PART NUMBER(S): *Indicates EZConnect™ configuration option

*AP-MM4G-C2W2G-[x]-B1  MIMO Cell/LTE x 2, Wi-Fi x 2 & GNSS, Black, 1 foot coax
AP-CABLE-C2W2G-1-2-1-6  EZConnect Cable Harness with MIMO Cell/LTE x 2, Wi-Fi x 2, & GNSS, SMA on Cell/LTE & GNSS, RP SMA on Wi-Fi, 6 feet length
AP-M2M2-CCWWG-[x]-S22222- RP34-BL-6  MIMO Cell/LTE x 2, Wi-Fi x 2 & GNSS, SMA on Cell/LTE & GNSS, RP-SMA on Wi-Fi, Black, 6 feet coax
*AP-MM4G-C2WG-[x]-B1  MIMO Cell/LTE x 2, Wi-Fi & GNSS, Black, 1 foot coax
AP-CABLE-C2WG-1-2-1-6  EZConnect Cable Harness with MIMO Cell/LTE x 2, Wi-Fi, & GNSS, SMA on Cell/LTE & GNSS, RP SMA on Wi-Fi, 6 feet length
AP-M2M2-CCWG-[x]-S2222-RP3- BL-6  MIMO Cell/LTE x 2, Wi-Fi x 1 & GNSS, SMA on Cell/LTE & GNSS, RP-SMA on Wi-Fi, Black, 6 feet coax
*AP-MM4G-C2G[x]-B1  MIMO Cell/LTE x 2 & GNSS, Black, 1 foot coax
AP-CABLE-C2G-1-1-6  EZConnect Cable Harness with MIMO Cell/LTE x 2 & GNSS, SMA on Cell/LTE & GNSS, 6 feet length
AP-M2M2-CCG-[x]-S222-BL-6  MIMO Cell/LTE x 2 & GNSS, SMA on Cell/ LTE & GNSS, Black, 6 feet coax
*AP-MM4G-C2W-[x]-B1  MIMO Cell/LTE x 2 & Wi-Fi, Black, 1 foot coax
AP-CABLE-C2W-1-2-6  EZConnect Cable Harness with MIMO Cell/LTE x 2 & Wi-Fi, SMA on Cell/LTE, RP SMA on Wi-Fi, 6 feet length
AP-M2M2-CCW-[x]-S222-RP3-BL-6  MIMO Cell/LTE x 2 & Wi-Fi, SMA on Cell/ LTE, RP-SMA on Wi-Fi, Black, 6 feet coax
*AP-MM4G-CWG-[x]-B1  Cell/LTE, Wi-Fi & GNSS, Black, 1 foot coax
AP-CABLE-CWG-1-2-1-6  EZConnect Cable Harness with Cell/LTE, Wi-Fi, & GNSS, SMA on Cell/LTE & GNSS, RP SMA on Wi-Fi, 6 feet length
AP-M2M2-CWG-[x]-S222-RP2-BL-6  Cell/LTE x 1 & Wi-Fi, SMA on Cell/LTE & GNSS, RP-SMA on Wi-Fi, Black, 6 feet coax
*AP-MM4G-C2-[x]-B1  MIMO Cell/LTE x 2, Black, 1 foot coax
AP-CABLE-C2-1-6  EZConnect Cable Harness with MIMO Cell/LTE x 2, SMA on Cell/LTE, 6 feet length
AP-M2M2-CC-[x]-S22-BL-6  MIMO Cell/LTE x 2, SMA on Cell/LTE, Black, 6 feet coax
*AP-MM4G-CG-[x[-B1  Cell/LTE & GNSS, Black, 1 foot coax
AP-CABLE-CG-1-1-6  EZConnect Cable Harness with Cell/LTE & GNSS. SMA on Cell/LTE & GNSS, 6 feet length
AP-M2M2-CG-[x]-S22-BL-6  Cell/LTE x 1, SMA on Cell/LTE & GNSS, Black, 6 feet coax
*AP-MM4G-W2-[x[-B1  MIMO Wi-Fi x 2, Black, 1 foot coax
AP-CABLE-W2-2-6  EZConnect Cable Harness with MIMO Wi-Fi x 2, RP SMA on Wi-Fi, 6 feet length
AP-M2M2-WW-[x]-S22-RP-BL-6  Wi-Fi x 2, RP-SMA on Wi-Fi, Black, 6 feet coax
*AP-MM4G-W-[x[-B1  Wi-Fi, Black, 1 foot coax
AP-CABLE-W-2-6  EZConnect Cable Harness with Wi-Fi, RP SMA on Wi-Fi, 6 feet length
AP-M2M2-W-[x]-S2-RP-BL-6  Wi-Fi x 1, RP-SMA on Wi-Fi, Black, 6 feet coax

Mounting Options [x]: Must be mounted on metal

Q Threaded Bolt Mount
A Adhesive Mount
M Magnetic Mount

Cable Length [y]

1 1 foot
3 3 feet
4 4 feet
6 6 feet
10 10 feet
15 15 feet
On request Other lengths

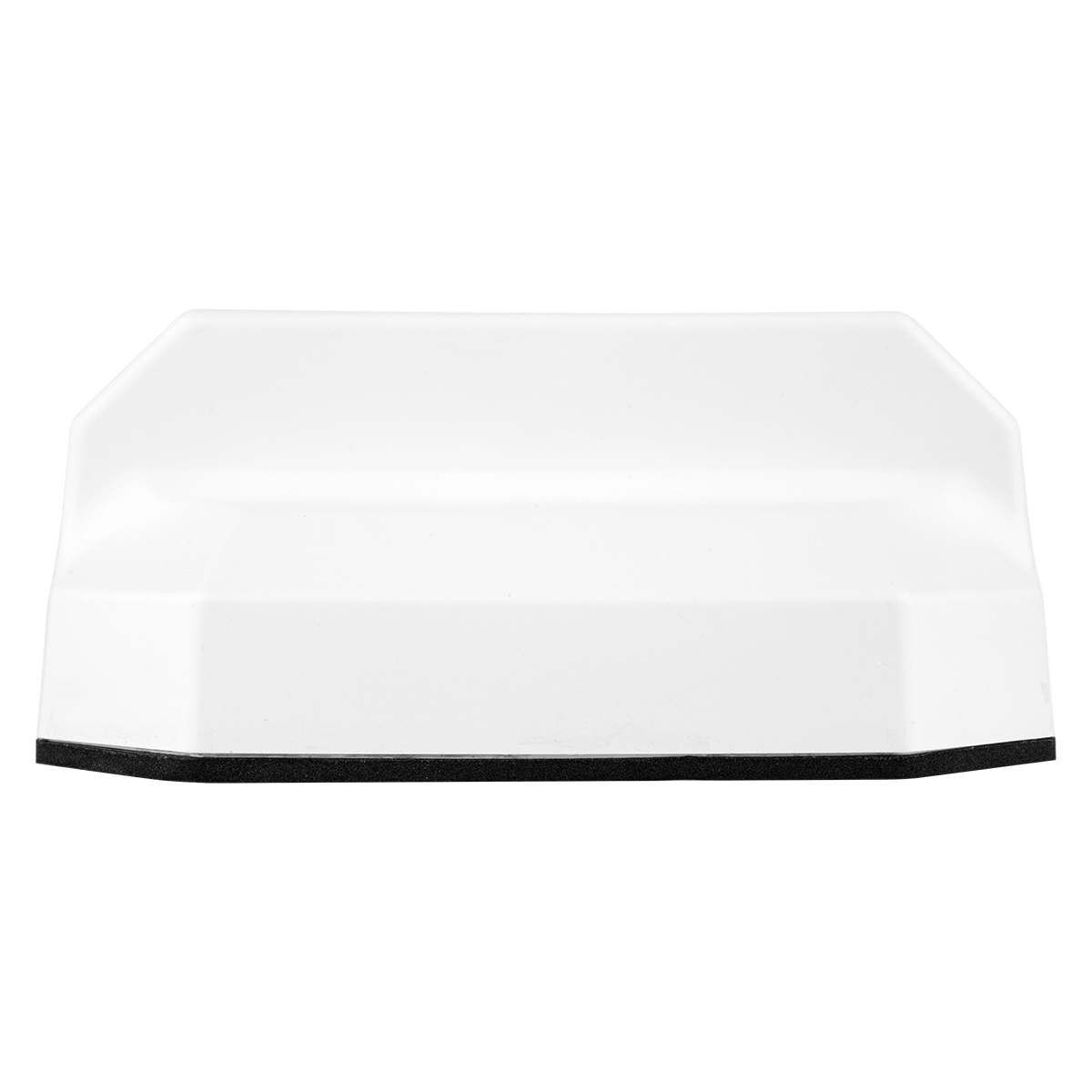

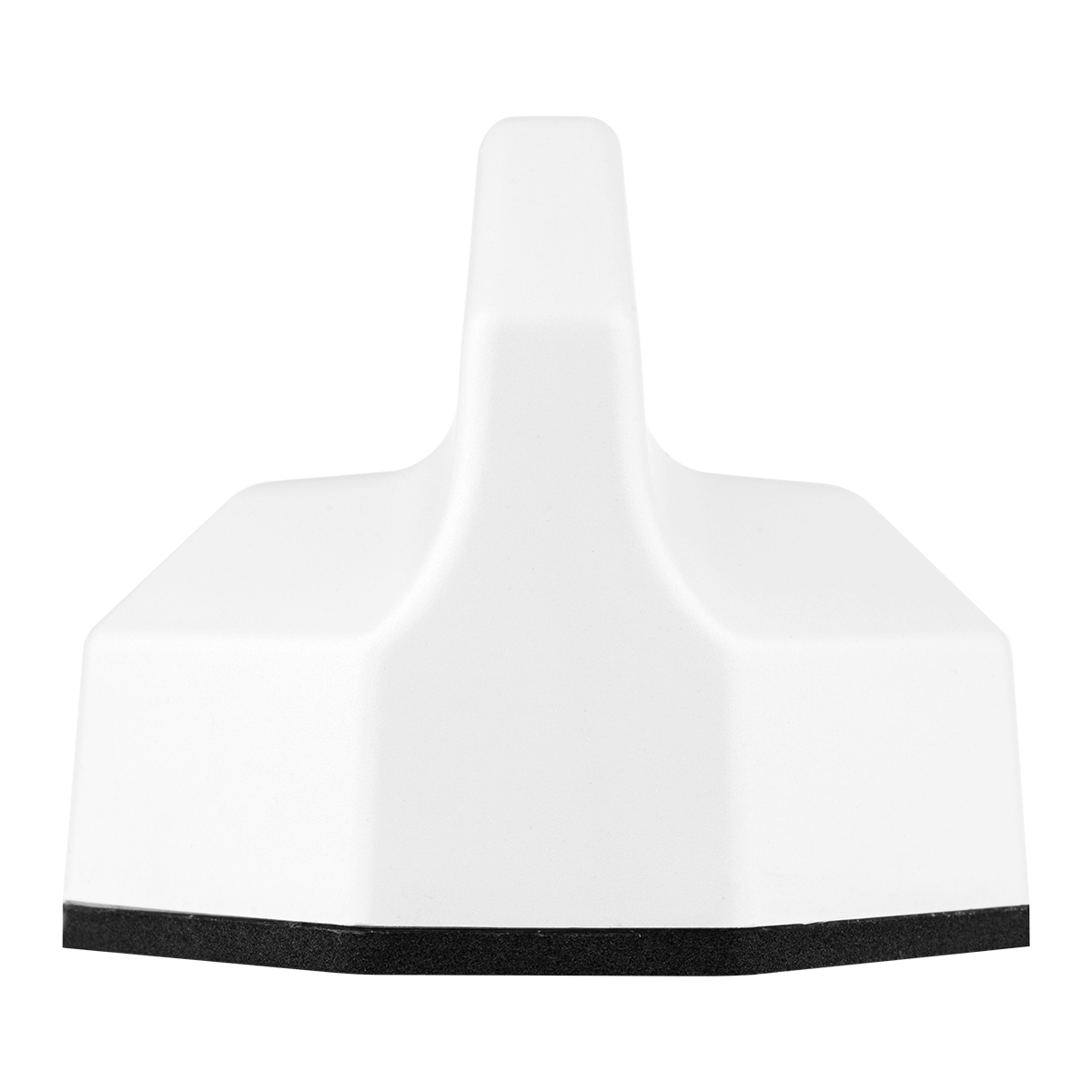

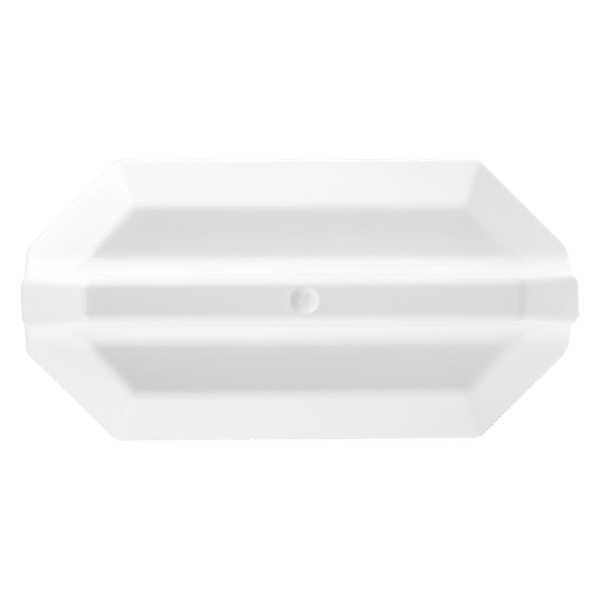

Also available in color white, customizable cable lengths up to 35 feet, and other connector variations.

Electrical Data
Frequency RangeElements 1 up to 2: 698-960/1700-2700 MHz
-Elements 3 up to 4: 2.4/4.9-6.0 GHz
-Element 5 (optional): 1550~1610 MHz
Operational BandsElements 1 up to 2: LTE/Cellular
-Elements 3 up to 4: Wi-Fi
-Element 5 (optional): GPS L1/GALILEO E1/GLONASS G1/BeiDou B1/QZSS L1
Peak Gain: IsotropicElements 1 up to 2: 698-960 MHz 3 dBi; 1710-2700 MHz 6 dBi
-Elements 3 up to 4: 2.4 GHz, 5.5 GHz; 6.5 dBi, 4.2 dBi
-Element 5 (optional): 30.5 dBi
IsolationElements 1 up to 2: > 10 dB
-Elements 3 up to 4: > 30 dB
Correlation Co-efficientElements 1 up to 2: < 0.1
Environmental Data
Hazardous SubstancesRoHS Compliant
Temperature-40ºC to 65ºC (-40ºF to +149ºF) Operating and Storage conformance to IEC 60068
Humidity (Non-Condensing)5% to 96% Operating and Storage conformance to IEC 60068
Water IngressIP67
Military SpecMIL-STD 810 conformance to vibration
Mounting Data
DimensionsHeight: 2.19” (55.5mm)
-Width: 2.56” (65mm)
-Length: 4.84” (122.9mm)

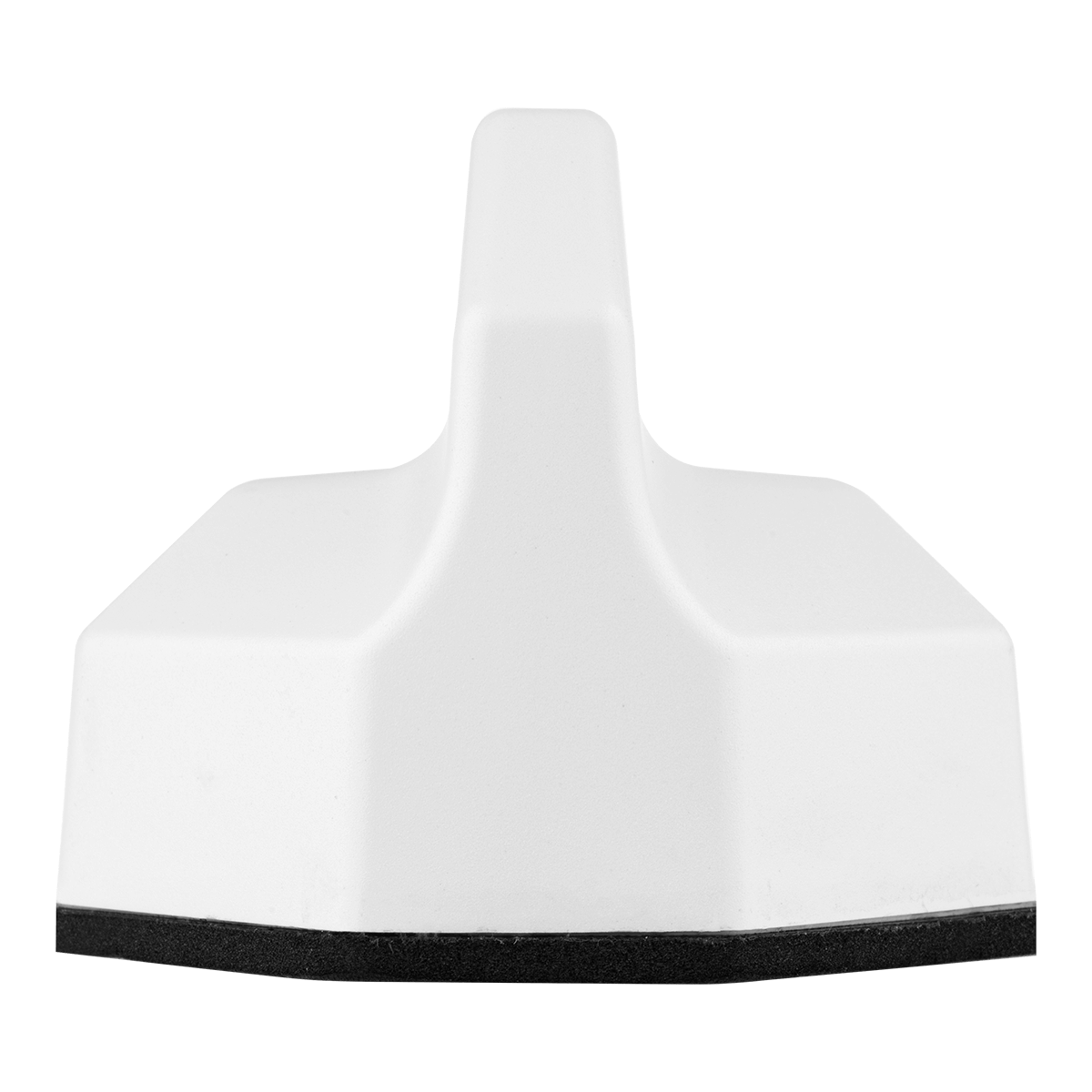

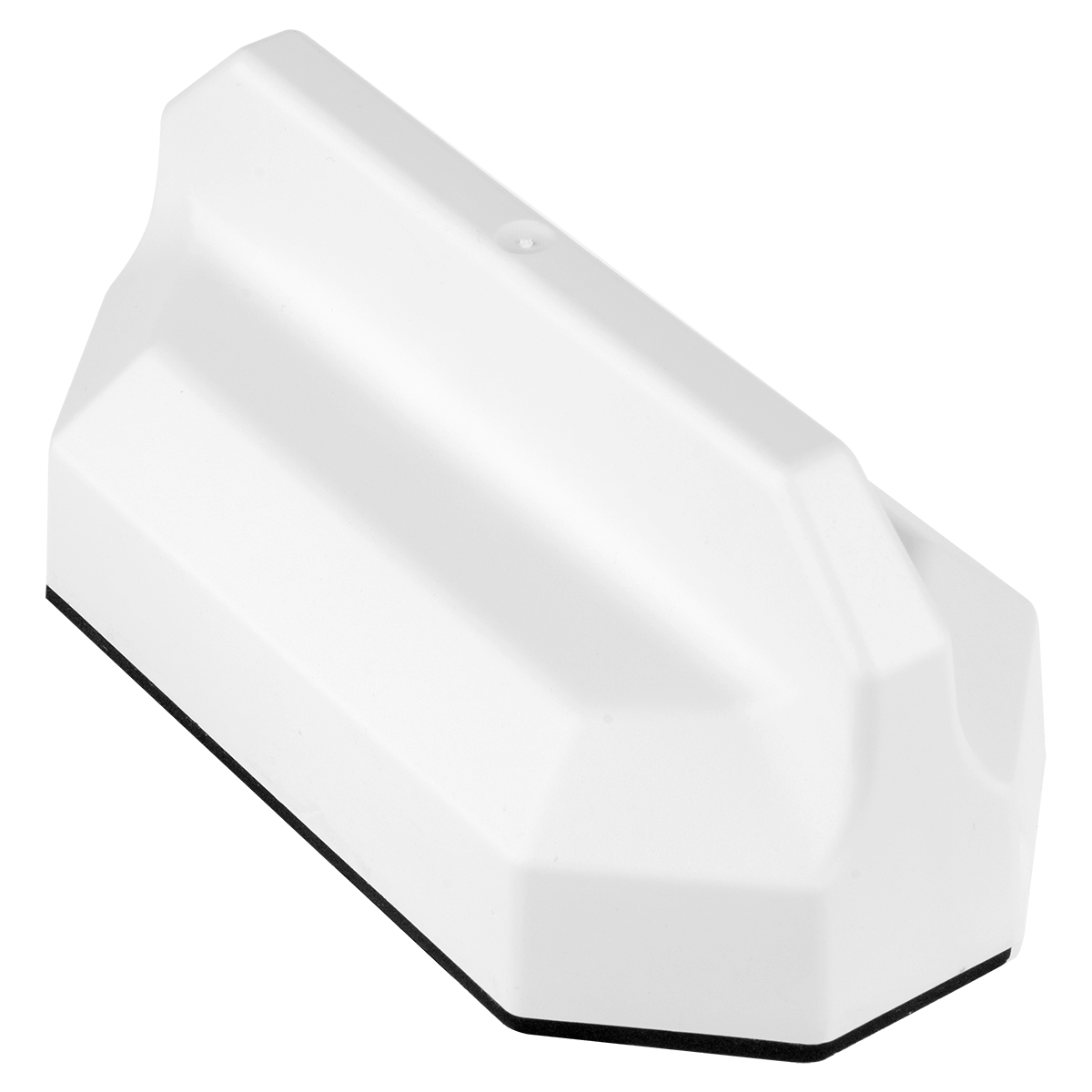

ColorBlack (BL) or White (WH)
Cable Data
Cell StandardType: LMR-195 Low Loss
-Diameter: 0.195” (4.953 mm)
-Length: 1 ft (0.3 m)
-Termination: SMA Male
Cell EZConnectType: LMR-100 Low Loss
-Diameter: 0.110” (2.79mm)
-Length: 1 ft (0.3m)
-Termination: SMA Male
Wi-Fi StandardType: LMR-195 Low Loss
-Diameter: 0.195” (4.953 mm)
-Length: 1 ft (0.3 m)
-Termination: RP-SMA Male
Wi-Fi EZConnectType: LMR-100 Low Loss
-Diameter: 0.110” (2.79mm)
-Length: 1 ft (0.3m)
-Termination: SMA Female
GNSS StandardType: RG-174U
-Diameter: 0.100″ (2.54 mm)
-Length: 1 ft (0.3 m)
-Termination: SMA Male
GNSS EZConnectType: LMR-100 Low Loss
-Diameter: 0.110” (2.79mm)
-Length: 1 ft (0.3m)
-Termination: FME Female
GNSS Data – Ceramic Patch Antenna Specification
Bandwidth1561 – 1602 MHz
Gain@Zenith2.5 dBi
PolarizationR.H.C.P.
Axial Ratio3.0 dB Typ.
GNSS Data – LNA Specification
Noise Figure1.2 dB
Gain28 dBi
Voltage3.3V~5.6V
Current9.6±1mA@3.3V
