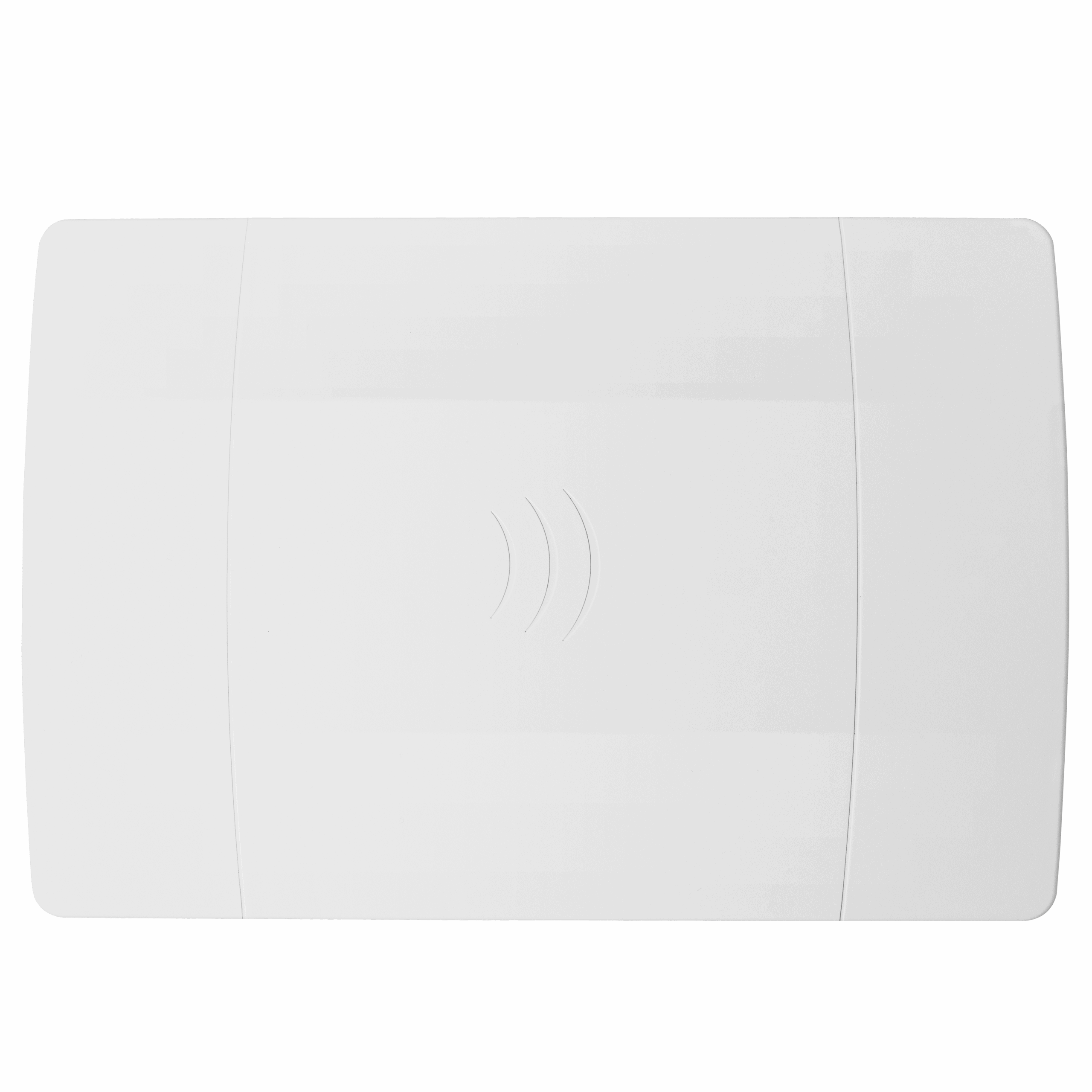

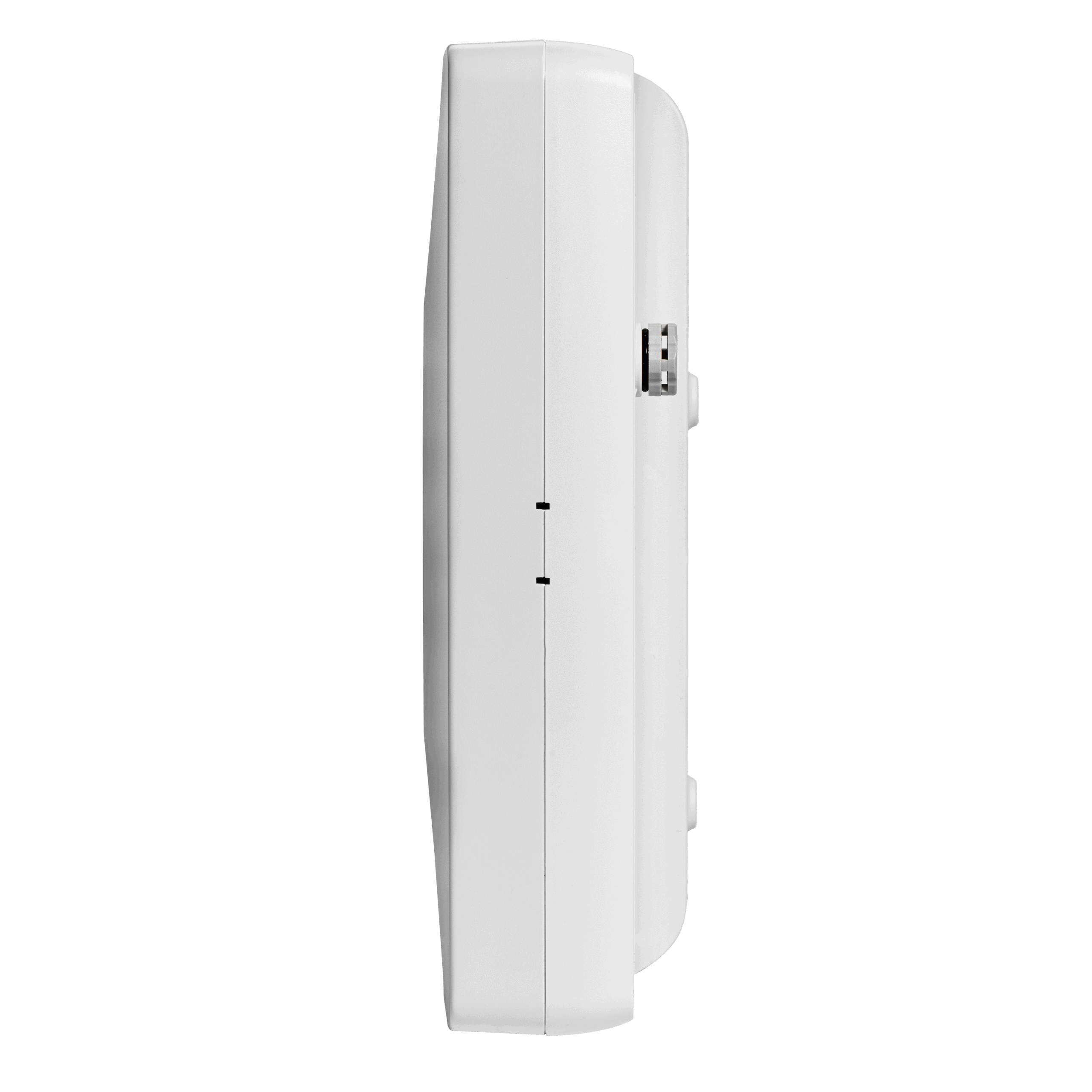

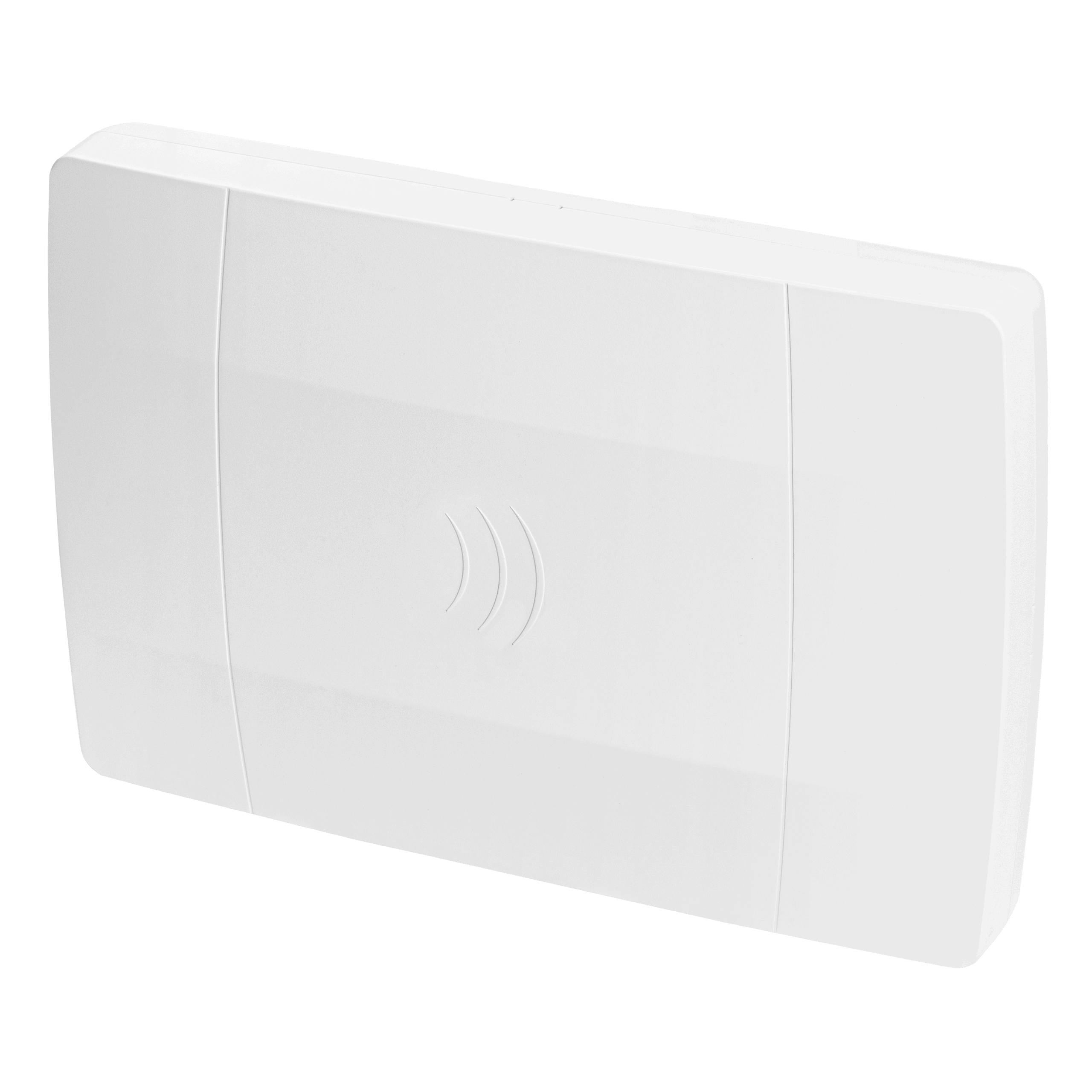

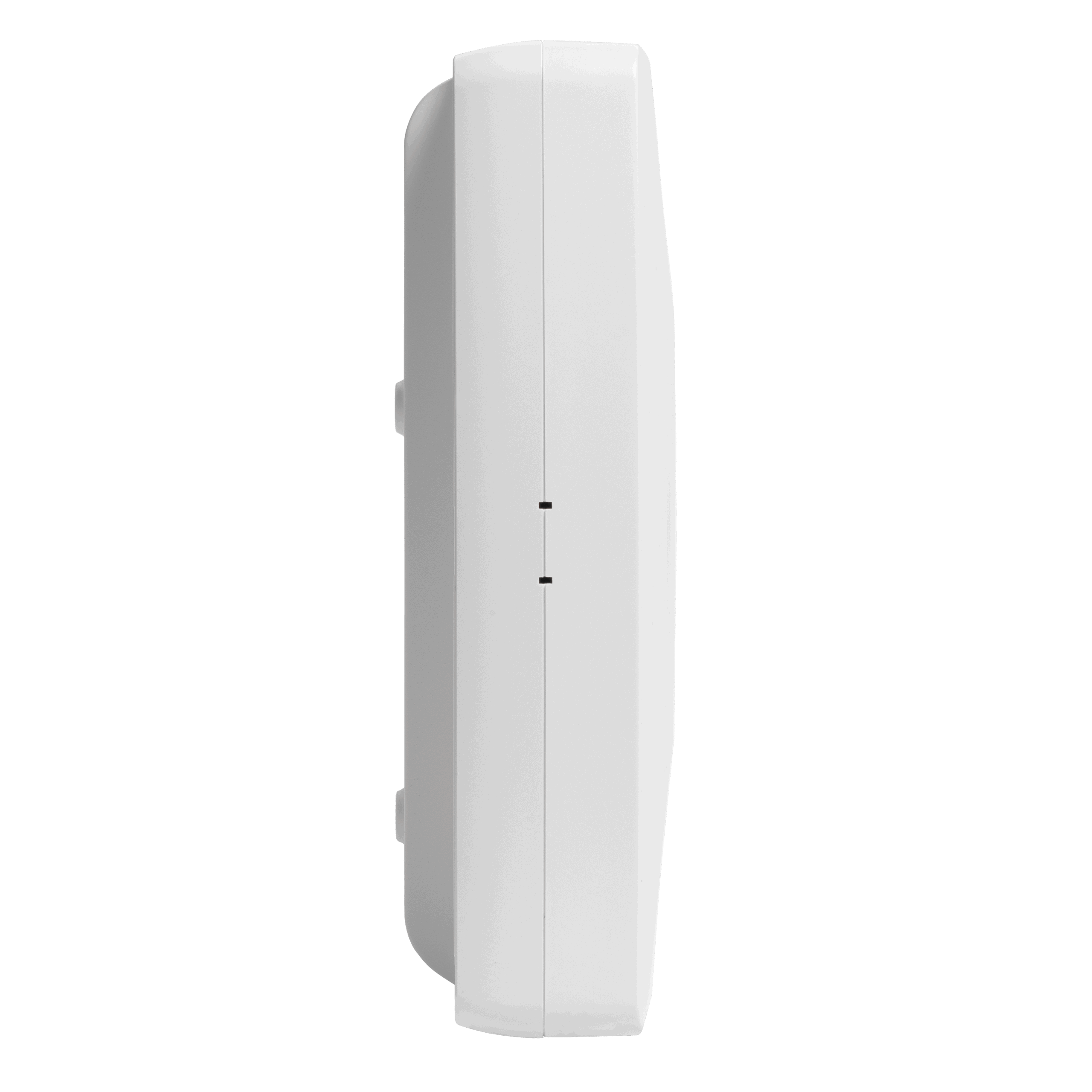

Lumos™ 5G Fixed Wireless Access Antenna

Airgain’s high gain 5G fixed wireless access (FWA) antenna is designed to maximize the performance of enterprise routers, indoor FWA devices, customer premises equipment (CPE), and most other cellular-based applications. Lumos also comes with IP67 ingress protection for enhanced outdoor signal quality in virtually any environment.

Request a quote

Airgain’s high gain 5G fixed wireless access (FWA) antenna is designed to maximize the performance of enterprise routers, indoor FWA devices, customer premises equipment (CPE), and most other cellular-based applications. Lumos also comes with IP67 ingress protection for enhanced outdoor signal quality in virtually any environment.

PART NUMBERS

AP-LM5G-C4  EZConnect Antenna with 4×4 MIMO LTE/5G, SMA Male connectors, White, includes Adjustable Mounting Bracket
[z]-C4-1-14  EZConnect Cable Harness with Cell x 4, SMA Male connectors, 14 feet length
AP-LM5G-C2  EZConnect Antenna with 2×2 MIMO LTE/5G, SMA Male connectors, White, includes Adjustable Mounting Bracket
[z]-C2-1-14  EZConnect Cable Harness with Cell x 2, SMA Male connectors, 14 feet length

EZConnect Cable Harness [z]:

CH  Inquire to distributor for select SKUs
CCH  Custom Cable Harness with cable lengths up to 34 feet, and other variations

For installation instructions please visit https://www.airgain.com/installation-and-removal-guides/.

Electrical
Frequency Range617-960/1700-2700/3300-4200 MHz
Operational BandsLTE/5G
PolarizationCross-polarized ±45°
Peak Gain617-960 MHz, 3.1 dBi (omni-directional)
-1700-2700 MHz, 8.6 dBi (directional)
-3300-4200 MHz, 11.1 dBi (directional)
Horizontal Beamwidth617-960 MHz, N/A (omni-directional)
-1700-2700 MHz, 70°±15°
-3300-4200 MHz, 65°±10°
Vertical Beamwidth617-960 MHz, N/A (omni-directional)
-1700-2700 MHz, 40°±10°
-3300-4200 MHz, 27°±5°
Isolation>12 dB
Average Efficiency617-960 MHz, >44%
-1700-2700 MHz, >48%
-3300-4200 MHz, >53%
Correlation Co-efficient<0.1
Max Input Power2 W
Environmental
Hazardous SubstancesRoHS Compliant
Temperature-40ºC to 85ºC (-40ºF to + 185ºF) Operating and Storage
Humidity (Non-Condensing)60ºC and 95% RH Operating and Storage
Water IngressIP67
Survival Wind Speed250 km/h
Mechanical
DimensionsHeight: 8.8” (222.7mm)
-Width: 13” (331.9mm)
-Thickness: 2.7” (68.0mm)
Weight2.8 lbs (1.3 kg)
ColorWhite

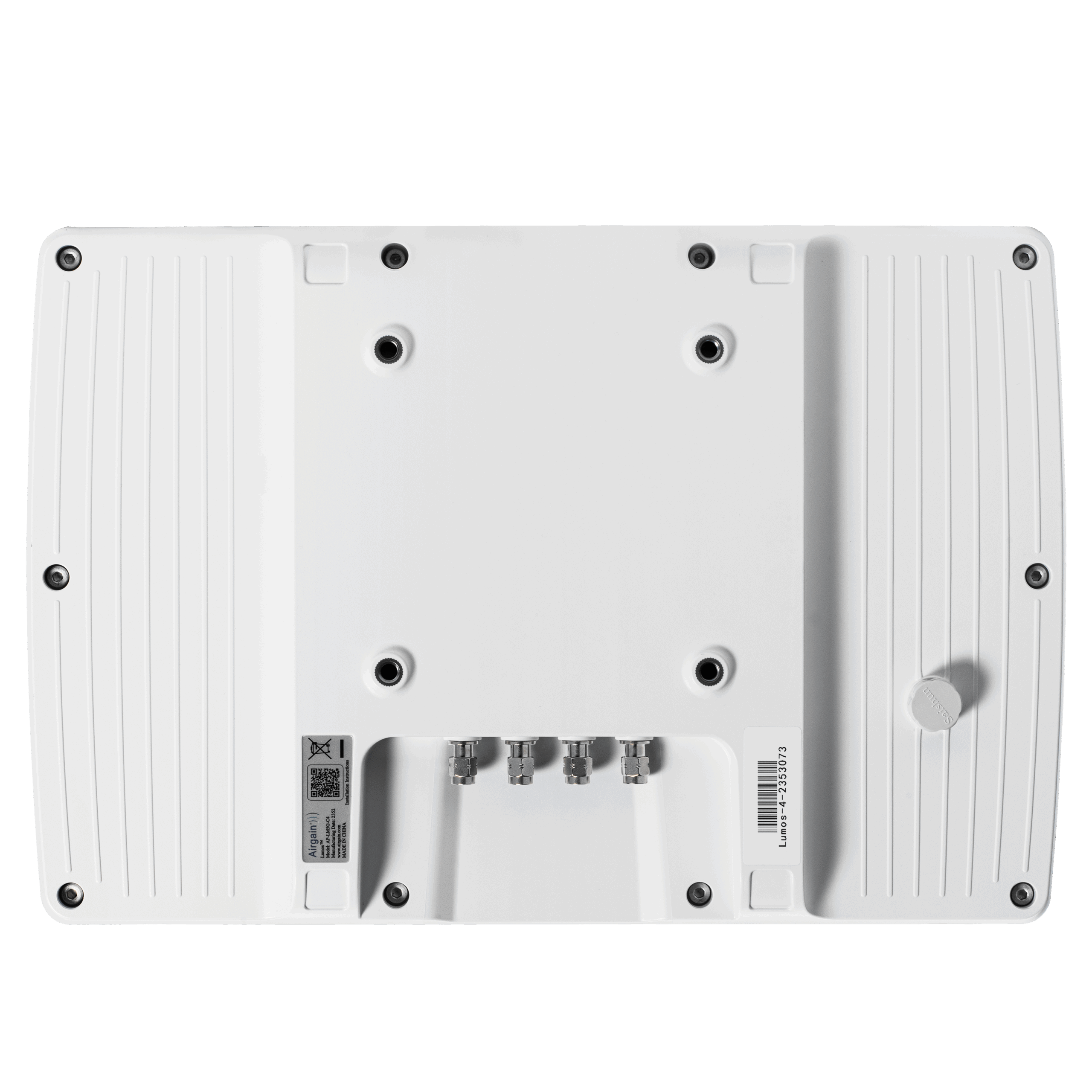

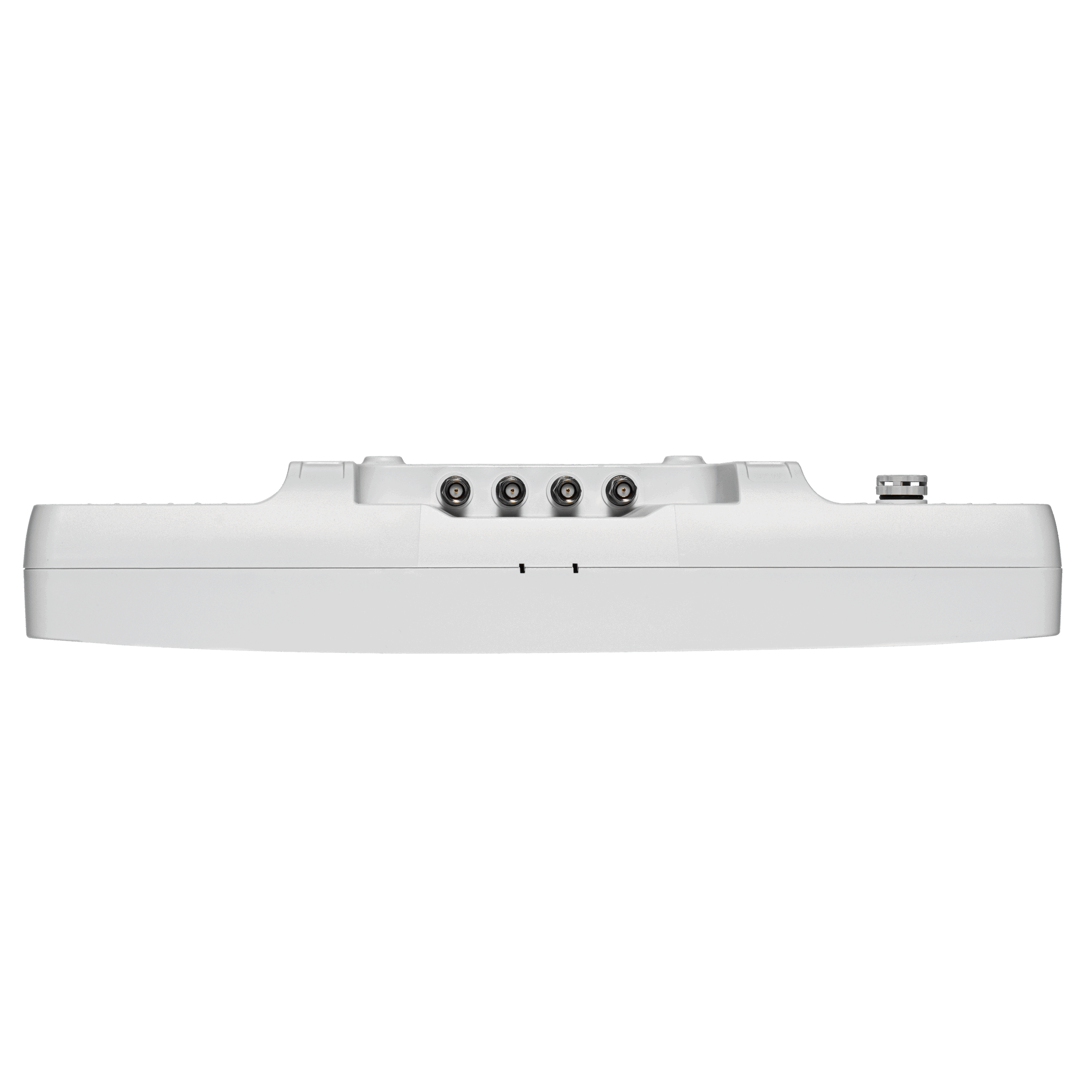

ConnectorSMA Male
