RECON13™ 5G

SKU: RT5G

Up to 13-in-1 High Performance IP67/IP69K Antenna

  • 4x 4x
  • 8x 8x
  • 1x 1x
Request a quote
SKU: RT5G Categories: 5G Connectivity, Antenna Plus® Antennas, EZConnect, Fleet & Public Safety,

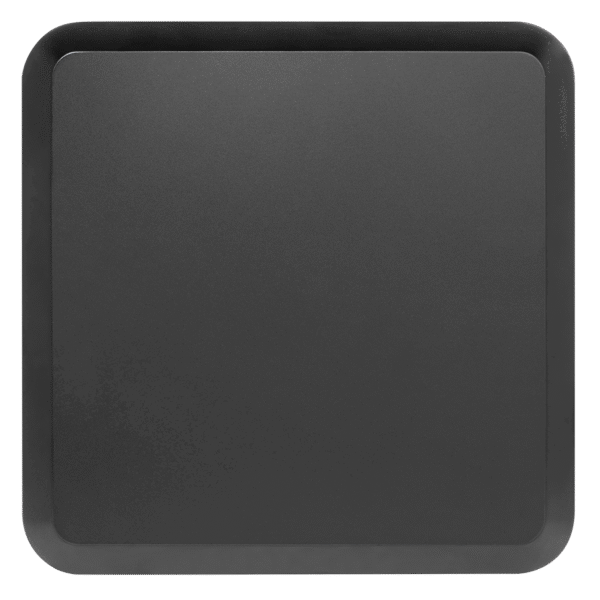

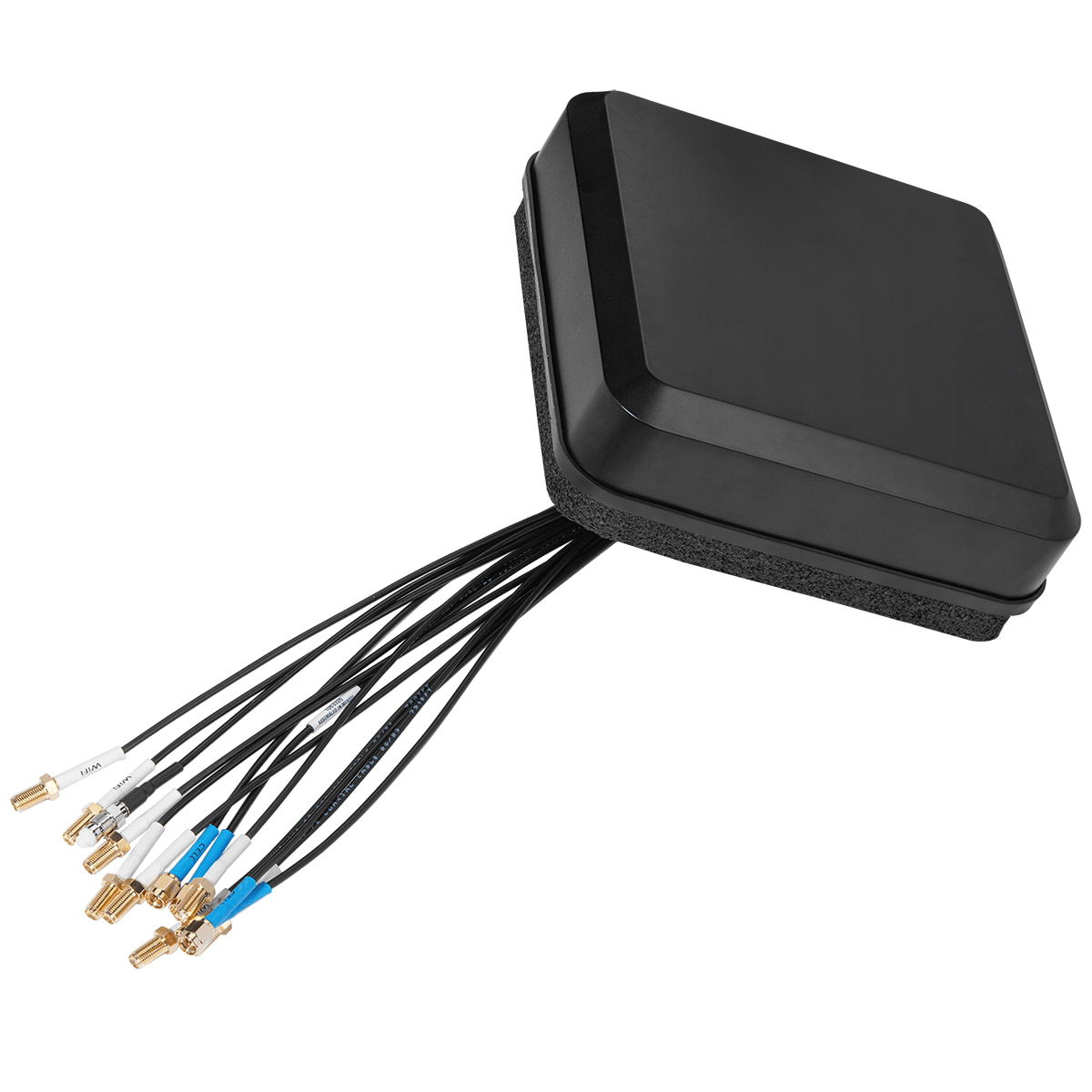

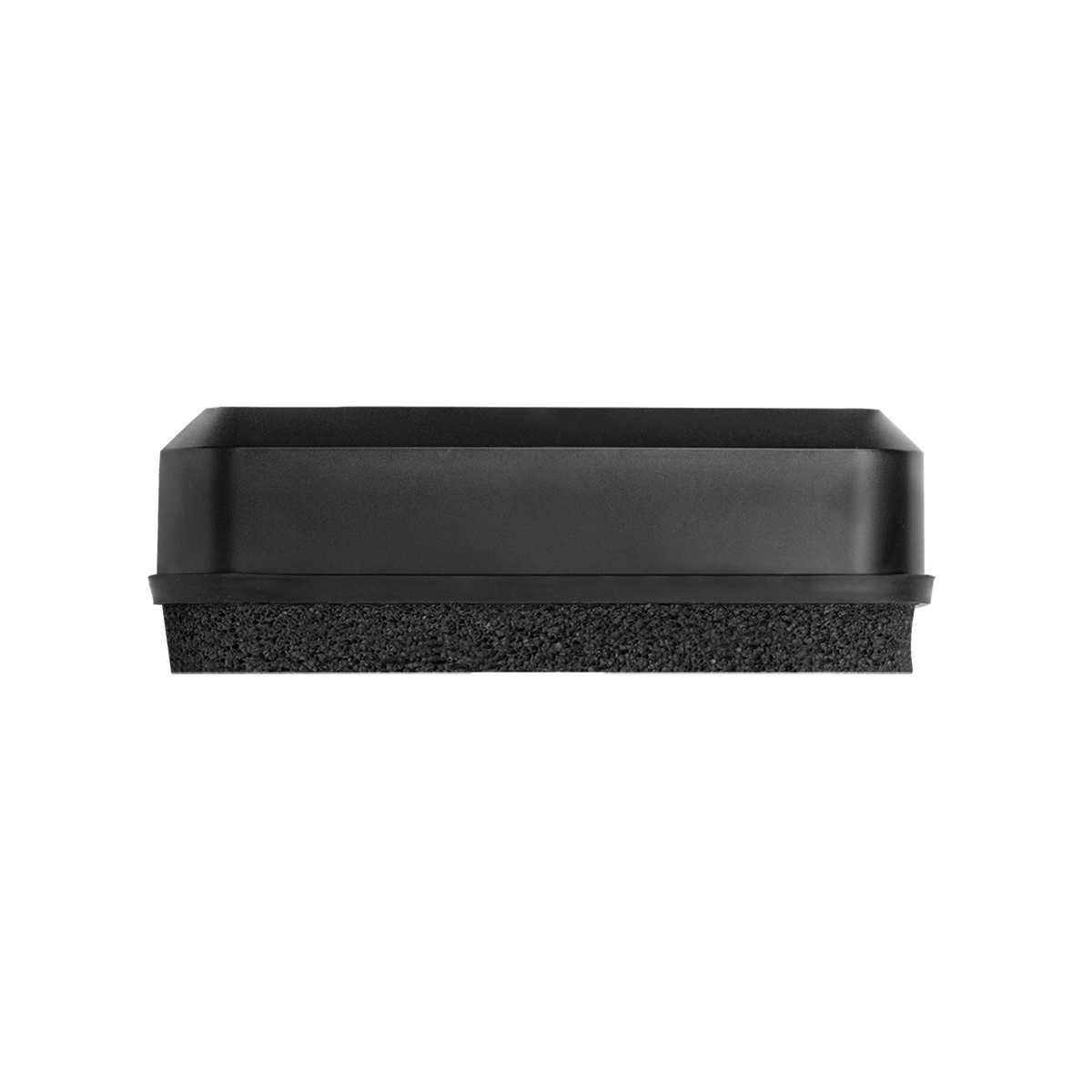

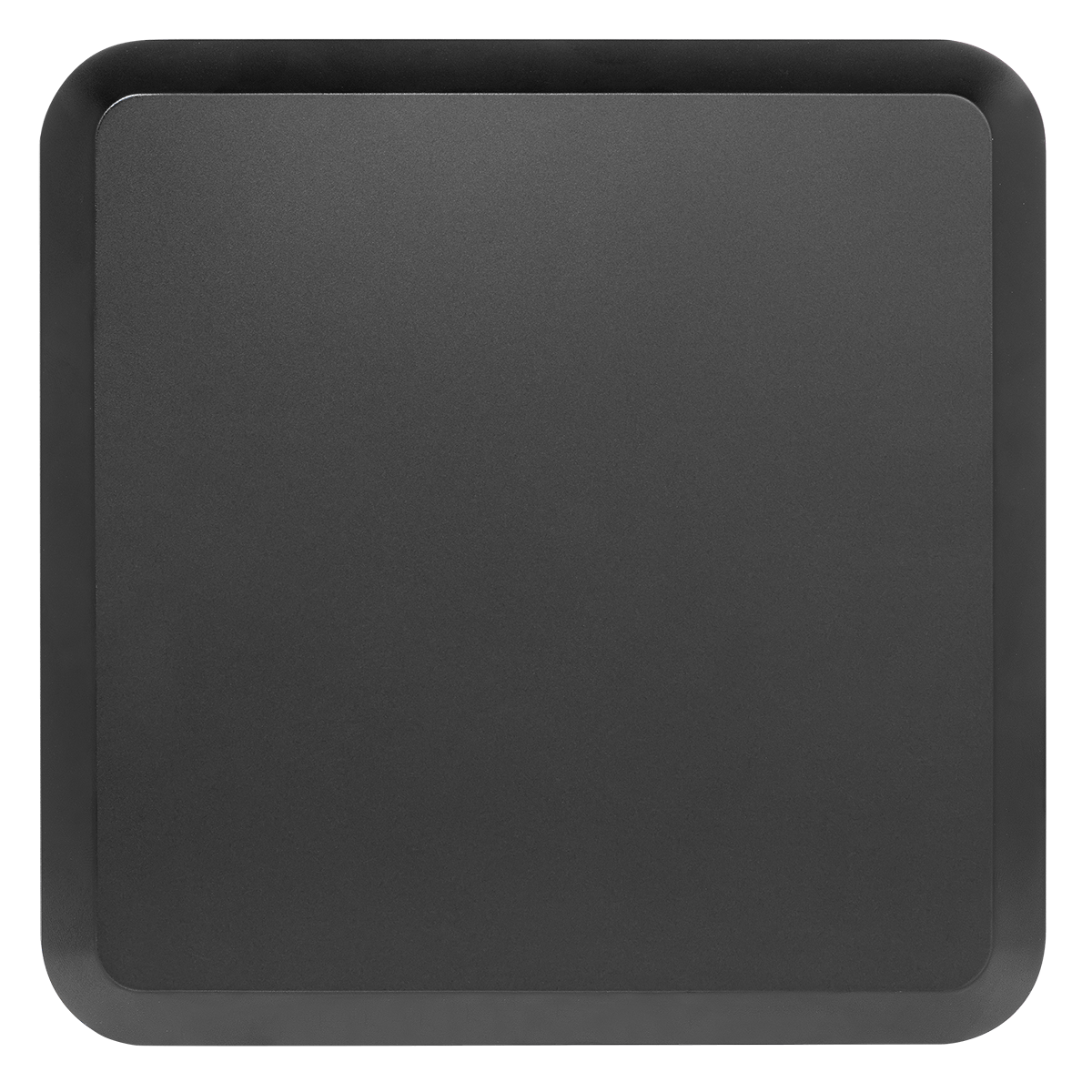

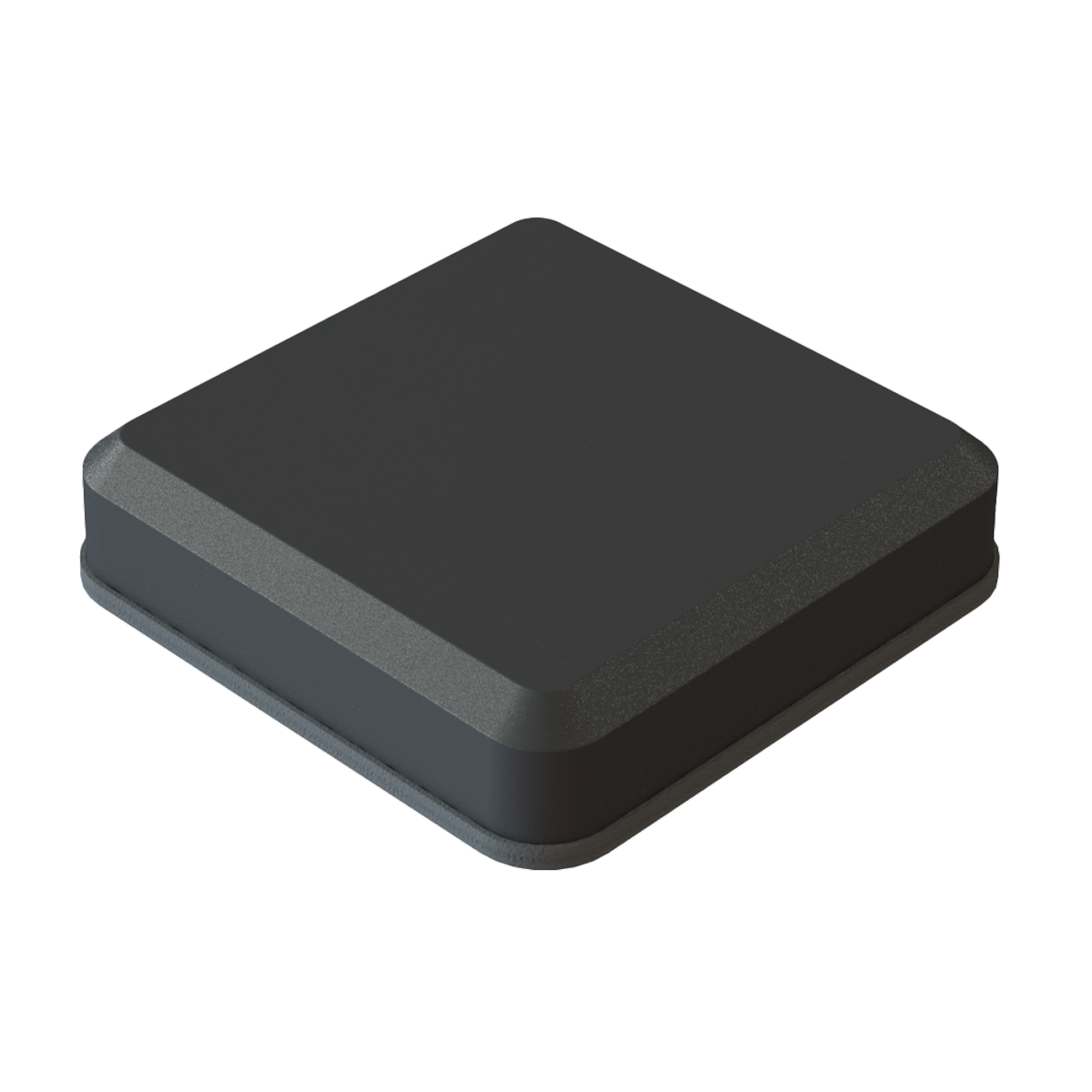

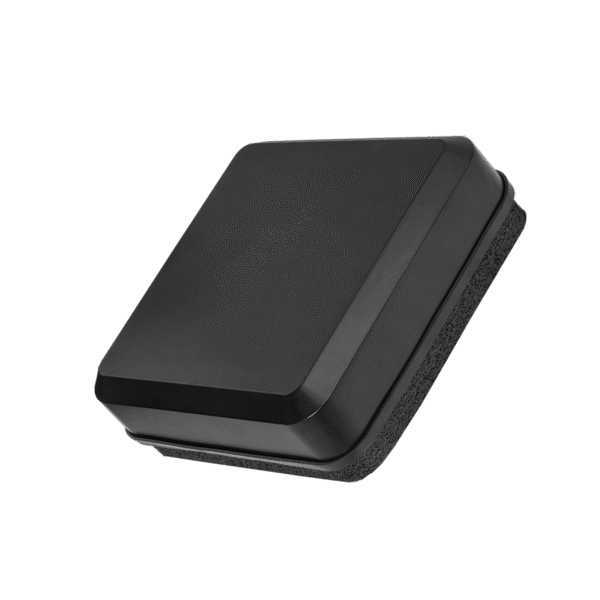

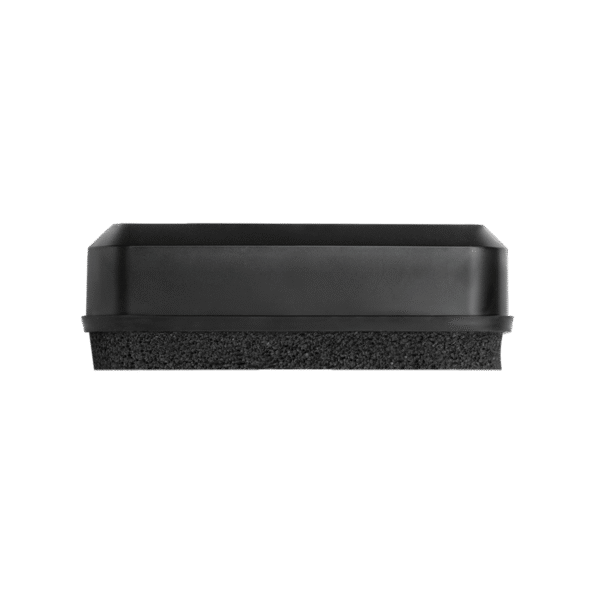

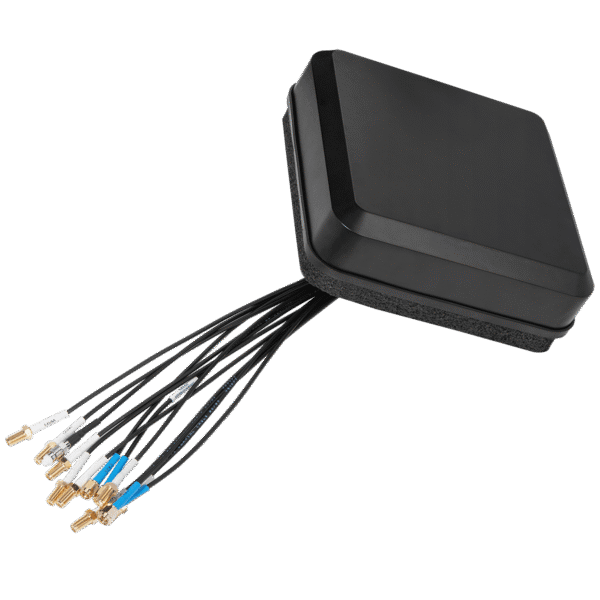

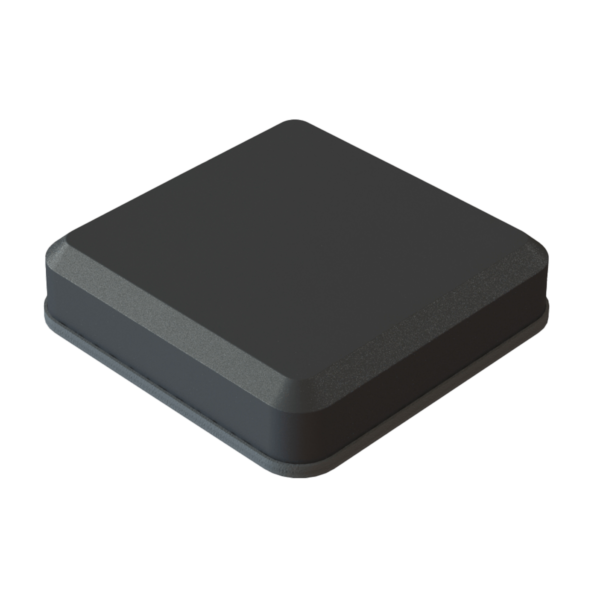

A rugged outdoor antenna, RECON13 is designed to provide high performance LTE and 5G connectivity for fleet and public safety vehicles and assets. The extremely low profile makes it more covert and less obstructive. Equipped with up to 13 ports, this antenna connects to virtually any vehicular router or modem.

COMMON PART NUMBERS (inquire to Airgain for other configurations)

*Requires EZConnect Cable Harness

*AP-RT5G-C4W8G-[x]-B1  EZConnect Antenna with MIMO LTE/5G x 4, Wi-Fi x 8 & GNSS, Black, 1 foot coax
[z]-C4W8G-1-2-1-14  EZConnect Cable Harness with Cell x 4, Wi-Fi x 8, GNSS, SMA on Cell & GNSS, RP-SMA on Wi-Fi, 14 feet length
*AP-RT5G-C4W5G-[x]-B1  EZConnect Antenna with MIMO LTE/5G x 4, Wi-Fi x 5 & GNSS, Black, 1 foot coax
[z]-C4W5G-1-2-1-14  EZConnect Cable Harness with Cell x 4, Wi-Fi x 5, GNSS, SMA on Cell & GNSS, RP-SMA on Wi-Fi, 14 feet length
*AP-RT5G-C4W4G-[x]-B1  EZConnect Antenna with MIMO LTE/5G x 4, Wi-Fi x 4 & GNSS, Black, 1 foot coax
[z]-C4W4G-1-2-1-14  EZConnect Cable Harness with Cell x 4, Wi-Fi x 4, GNSS, SMA on Cell & GNSS, RP-SMA on Wi-Fi, 14 feet length
*AP-RT5G-C4W2G-[x]-B1  EZConnect Antenna with MIMO LTE/5G x 4, Wi-Fi x2 & GNSS, Black, 1 foot coax
[z]-C4W2G-1-2-1-14  EZConnect Cable Harness with Cell x 4, Wi-Fi x 2, GNSS, SMA on Cell & GNSS, RP-SMA on Wi-Fi, 14 feet length
*AP-RT5G-C4G-[x]-B1  EZConnect Antenna with MIMO LTE/5G x 4 & GNSS, Black, 1 foot coax
[z]-C4G-1-1-14  EZConnect Cable Harness with MIMO/ Cell x 4 & GNSS, SMA on Cell & GNSS, 14 feet length
*AP-RT5G-C4-[x]-B1  EZConnect Antenna with MIMO LTE/5G x 4, Black, 1 foot coax
[z]-C4-1-14  EZConnect Cable Harness with Cell x 4, SMA on Cell, 14 feet length

Mounting Options [x]:

Q Threaded Bolt Mount (includes pre-attached mounting foam for uneven surfaces), Must purchase AP-RT5G-MAG for magnetic mount
A Adhesive Mount

EZConnect Cable Harness [z]:

CH Inquire to distributor for select SKUs
CHH Custom Cable Harness with cable lengths up to 34 feet, and other variations

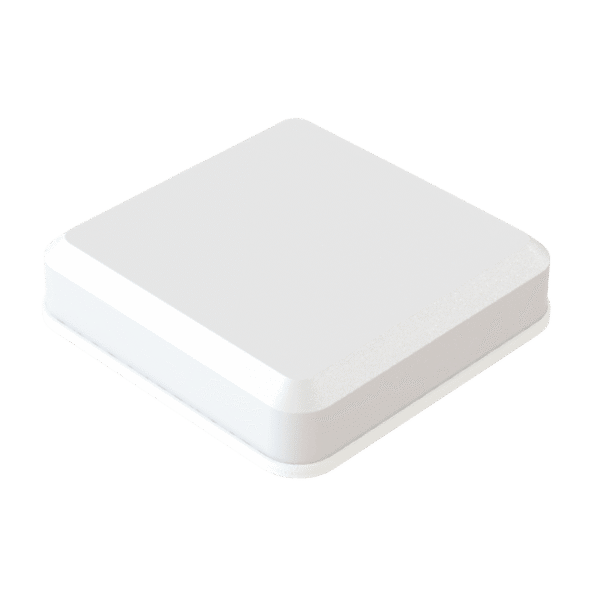

Also available in color white. For mounting instructions please visit https://www.airgain.com/installation-and-removal-guides/.

Electrical Data
Frequency RangeElements 1 up to 4: 617-960/1700-2700/3300-4200/5150-5850 MHz
-Elements 5 up to 12: 2.4/5.15-7.125 GHz
-Element 13 (optional): 1550~1610 MHz
Operational BandsElements 1 up to 4: 5G (Band 71, LTE, CBRS, LAA)
-Elements 5 up to 12: Wi-Fi 6E
-Element 13 (optional): GPS L1/GALILEO E1/GLONASS G1/BeiDou B1/QZSS L1
Peak Gain: IsotropicElements 1 up to 4: 617-960 MHz: 5.9 dBi; 1700-2700 MHz: 8.1 dBi; 3300-4200 MHz: 7.5 dBi; 5150-5850 MHz: 7.5 dBi
-Elements 5 up to 12: 2.4 GHz, 6.3 dBi; 5-7 GHz, 8.0 dBi
-Element 13 (optional): 33.4 dBi
IsolationElements 1 up to 4: >10 dB
-Elements 5 up to 12: >9 dB
Average EfficiencyElements 1 up to 4: 617-960 MHz, >55%; 1700-2700 MHz, >60%; 3300-4200 MHz, >52%; 5150-5850 MHz, >47%
-Elements 5 up to 12: 2.4 GHz, >50%; 5-7 GHz, >47%
Correlation Co-efficientElements 1 up to 4: 617-960 MHz: <0.4; 1700-2700 mhz: <0.3
Environmental Data
Hazardous SubstancesRoHS Compliant
Temperature-40ºC to 85ºC (-40ºF to + 185ºF) Operating and Storage
Humidity (Non-Condensing)60ºC and 95% RH Operating and Storage
Water IngressIP67 and IP69K
Military SpecConformance to MIL-STD 810G
Mounting Data
DimensionsHeight: 1.83” (46.5mm)
-Width: 7.46” (189.4mm)
-Length: 7.46” (189.4mm)
ColorBlack (B) or White (W)

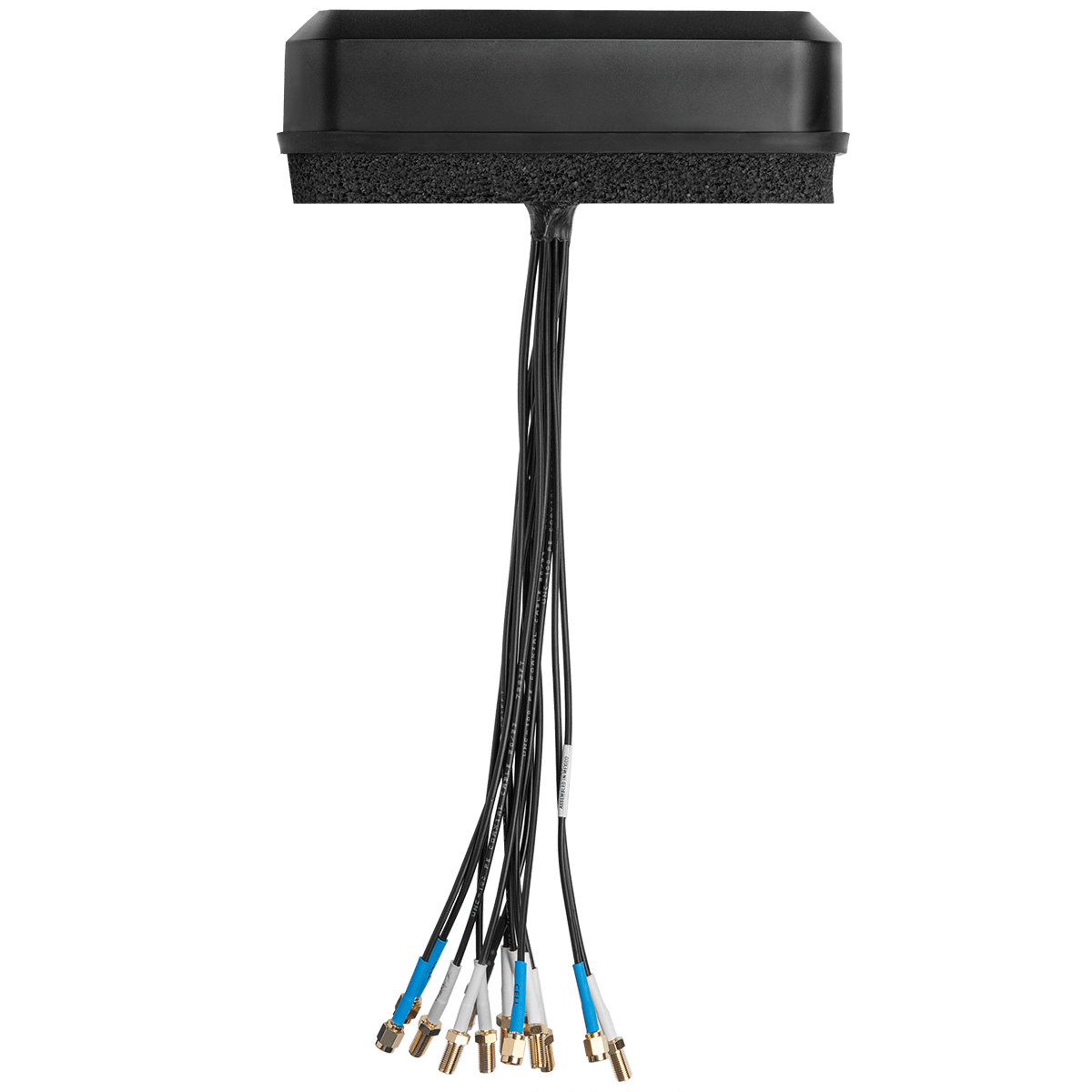

Cable Data
Cell/LTEType: LMR-195 Low Loss
-Diameter: 0.195” (4.95mm)
-Length: 1 feet (0.3 m)
-Termination: SMA Male
Wi-FiType: LMR-195 Low Loss
-Diameter: 0.195” (4.953 mm)
-Length: 1 ft (0.3 m)
-Termination: SMA Female
GNSSType: LMR-195 Low Loss
-Diameter: 0.195” (4.953 mm)
-Length: 1 feet (0.3 m)
-Termination: FME Female
GNSS Data- Ceramic Patch Antenna Specification
Bandwidth1558-1610 MHz
Gain@Zenith0 dBi
PolarizationR.H.C.P.
Axial Ratio3.0 dB Typ.
GNSS Data- LNA Specification
Noise Figure1.2 dB
Gain35 dBi
VSWR<2:1
Voltage1.6V~10V
Current9+/-2mA@3.3V
