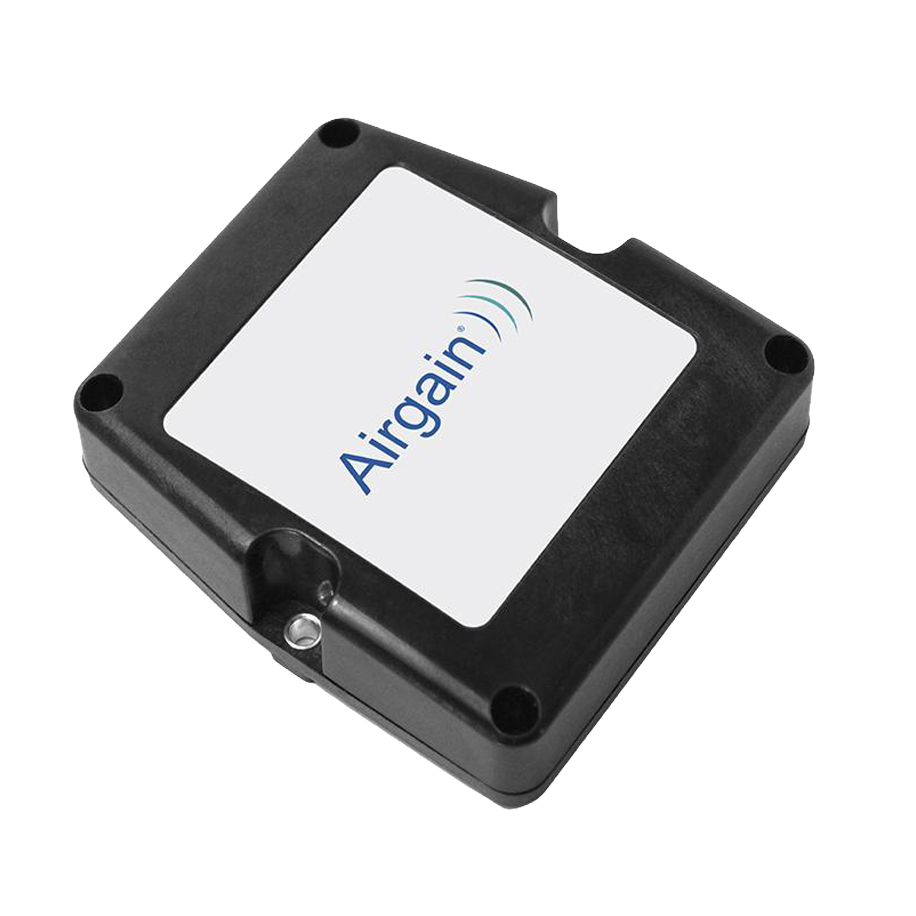

Airgain Asset Tracking Solutions are edge-to-enterprise systems that allow you quickly track, protect and optimize your assets. Each deployment-ready solution tightly integrates asset tracking devices, network connectivity and software all precisely configured to your use cases. The Airgain AT5 is a versatile, ruggedized asset-tracking device that leverages cellular, GPS, Wi-Fi, and environmental sensors to deliver solid reliability for monitoring location and motion. The AT5 device is IP-67 rated for water and dust resistance, works indoors and out and carries a robust power management system delivering industry-leading battery life. And, like all Airgain asset tracking devices, the AT5 supports multiple frequency bands and is globally capable.
The NLink Platform provides centralized device and configuration management to accommodate a vast array of use cases. Each device’s personality can be configured by modifying parameters in the cloud and gracefully integrates with the enterprise.
 |
Features and Benefits:
|
The Airgain Asset Tracking Solution leverages the latest low power wide area (LPWA) cellular technology which supports the Internet of Things through lower device complexity and extended coverage. Supporting multiple frequency bands, all our Asset Tracking devices are globally capable. Our strategic carrier relationships provide increasing geographic coverage and 2G fallback as these networks are rolled out.

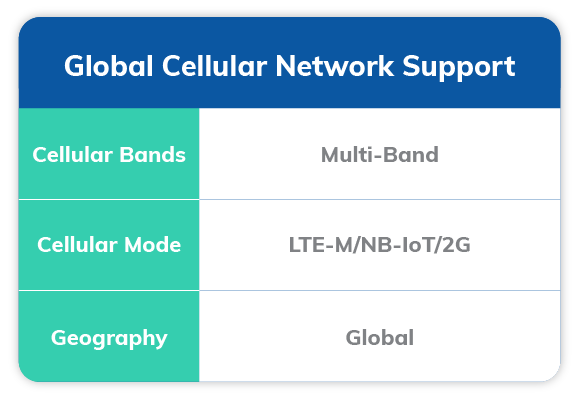

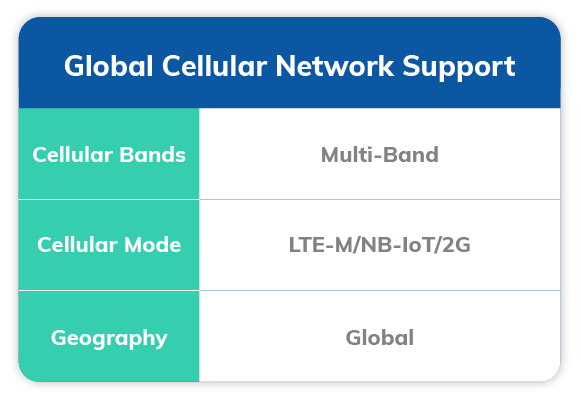

Multi-band because there is no single cellular network.
The rate at which the Asset Tracker checks in to the cloud is a significant factor in determining battery life. As the number of times a device checks-in increases, the overall battery life will be reduced.
The NL-AT5 runs on 4 AA lithium batteries. When configured to sample and report one time per day, the expected life is 8 years. For applications requiring faster reporting intervals, contact us and we’ll provide detailed characterization data.
The Airgain Asset Tracking Solution is a tightly coupled device-network-software solution.
| NL-AT5 | Global |
| LTE Category | LTE-M, NB-IoT, 2G |
| LTE Frequency Bands |
|
| 2G Frequency Band | GSM850, GSM900, DCS1800, PCS1900 |
| Dimensions | 3.85” x 3.4” x 1” (97.79 x 86.36 x 25.4mm) |
| Weight | 8 oz |
| Rugged | IP67 |
| Environment | -30 to +60C (-22°F to 140°F) |

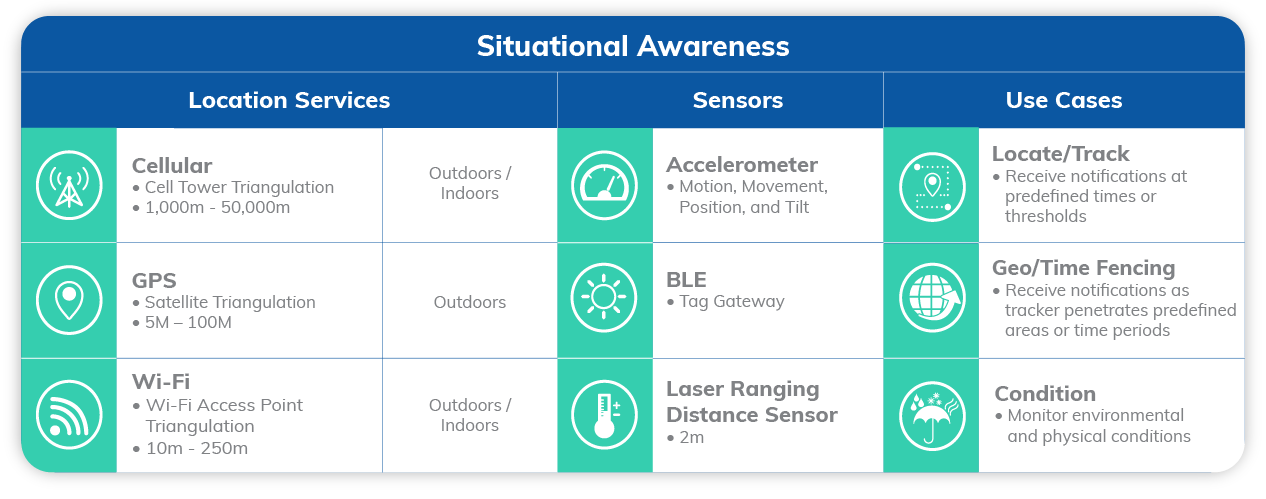

| Cellular | Cell Tower Triangulation, 1,000-50,000m |
| GPS | Satelitte Triangulation, 5m-100m |
| Wi-Fi | Wi-Fi Access Point Triangulation, 10-250m |
| Geofencing | Geofencing Capable |
| 3 Axis Accelerometer | Motion, Movement, Position, Tilt |
| BLE | Temper Detection |
| Lasor ranging distance sensor | Optional, 2m |
| How do I get started? | We offer a Deployment Kit for piloting and defining your specific application: Purchase a Deployment Kit at https://go.nimbelink.com. Or, alternatively, you can contact us at 612-285-3433 or [email protected] to discuss. |
| Can the solution be configured? | Yes, we have designed our solution to be highly configurable. We provide robust configuration through APIs therefore enabling the platform to remotely change the frequency of sensing and reporting requirements. |
| Can the product be private labeled? | Yes, please contact us at 612-285-3433 or [email protected] to discuss. |
| I purchased a deployment kit. Now what? | We have developed the NimbeLink Asset Tracking Solution to be as seamless as possible. The units will arrive running, connected to the deployment dashboard. Set up a 15-minute call with one of our experts to walk you through all the capabilities of the solution. |
| Can the data be sent to my system? | Yes, we offer a client-accessible API to push data to any enterprise system. |
| Can I buy the hardware without NLink? | No, the hardware is tightly coupled with NLink, our system management platform. This is how we can promise fast time to market and a secure, flexible solution. |
| Can I use my own cell plan? | Yes, the Asset Tracking Solution ships with included data plans. Volume manufacturing orders can be set up to use your provided SIM cards. |
